SMT Resistor and Capacitor Baking Standards

SMT Resistor and Capacitor Baking Standards

In the electronics manufacturing industry, Surface Mount Technology (SMT) is a critical process for producing high-performance, high-density electronic products. As the most fundamental and widely used components in circuits, the quality of resistors and capacitors (R/C components) directly impacts the stability and reliability of electronic products. During manufacturing, transportation, and storage, these components readily absorb moisture and contaminants from the environment. These impurities can lead to issues such as leakage current and short circuits during operation, compromising component performance and lifespan. The baking process thus becomes an indispensable step. It not only effectively removes internal moisture and contaminants but can also restore components whose performance has degraded due to long-term storage, bringing them back into compliance with design specifications. Through baking, the performance and reliability of SMT R/C components are enhanced, thereby providing a solid foundation for the high-quality manufacturing of electronic products.

I. Purpose of Baking SMT R/C Components

During the production, transportation, and storage of electronic components, they often absorb a certain amount of moisture or contaminants. This moisture and contaminants can cause malfunctions such as leakage current and short circuits during operation, adversely affecting component performance and service life. For instance, moisture inside a resistor can lead to unstable resistance values, while moisture inside a capacitor can cause leakage current, reducing its insulation performance. Furthermore, the internal chemical properties of some SMD components may change after prolonged storage, leading to performance degradation.

The baking process effectively removes internal moisture and contaminants, thereby improving the insulation performance and reliability of the components and ensuring their stable operation in practical applications. Baking can also help restore the performance of components that have degraded due to extended storage periods, allowing them to meet design standards again. Consequently, baking serves not only as a crucial method for enhancing component performance but also as a key step in ensuring the reliability of electronic products.

II. Baking Standards for SMT R/C Components

1.Temperature and Duration

Different types of R/C components require specific baking temperatures and durations. Common standards include:

• Resistors:​Typically baked at approximately 120°C for 10 hours in a constant temperature oven. This temperature and duration setting effectively removes internal moisture while avoiding potential damage from excessive heat.
• Capacitors:
• Paper capacitors and capacitors with higher voltage ratings experiencing leakage current can be baked at 65°C for 24 hours to restore performance. The lower temperature and longer duration facilitate gentle moisture removal while protecting the capacitor's internal structure.
• Electrolytic capacitors that have been stored for extended periods require special treatment before use. This may involve a "re-forming" process where voltage is gradually applied, starting below the rated voltage and increasing to 1.1 times the rated working voltage, holding for 1–2 hours. This process can be conducted inside an oven, utilizing its controlled temperature to assist the treatment.
• General Standard:​ For moisture-sensitive SMD chips/components, baking can be performed in a low-temperature oven at 40°C ±5°C with humidity less than 5% RH for 192 hours, or in a High-temperature oven at 125°C ±5°C for 24 hours. This standard applies to various types of SMD parts and effectively removes internal moisture, ensuring subsequent performance.

2.Other Conditions

• Humidity and Airflow:​ Maintaining appropriate humidity and airflow velocity is crucial during baking. Proper airflow promotes the uniform evaporation of moisture and other volatiles from the components, enhancing baking quality. For example, in some convection ovens, controlling airflow speed and direction ensures even temperature distribution across component surfaces, thereby improving the baking effectiveness.
• Electrostatic Discharge (ESD) Protection:​ Electrostatic discharge can damage components during baking, especially in low-humidity environments where static buildup is more likely. Therefore, ESD protective measures are necessary, such as using anti-static trays and grounding equipment, to ensure component safety throughout the baking process.

III. Applicable Oven Types

1.Convection Ovens

Convection ovens utilize a forced air circulation system to distribute hot air evenly within the chamber, enabling rapid and uniform heating of components. This oven type is suitable for baking R/C components that require fast heat-up and high temperature uniformity. For instance, in baking high-precision resistors, convection ovens can quickly reach the set temperature and maintain stability, thereby improving production efficiency and component quality.

2.Vacuum Drying Ovens

Vacuum drying ovens perform baking under a vacuum environment, which allows for more effective removal of internal moisture and contaminants. This type is suitable for R/C components requiring a high degree of dryness, particularly for high-precision components where moisture content must be strictly controlled. For example, in baking high-precision capacitors, Vacuum ovens can effectively remove trace moisture, ensuring component performance and reliability in subsequent applications.

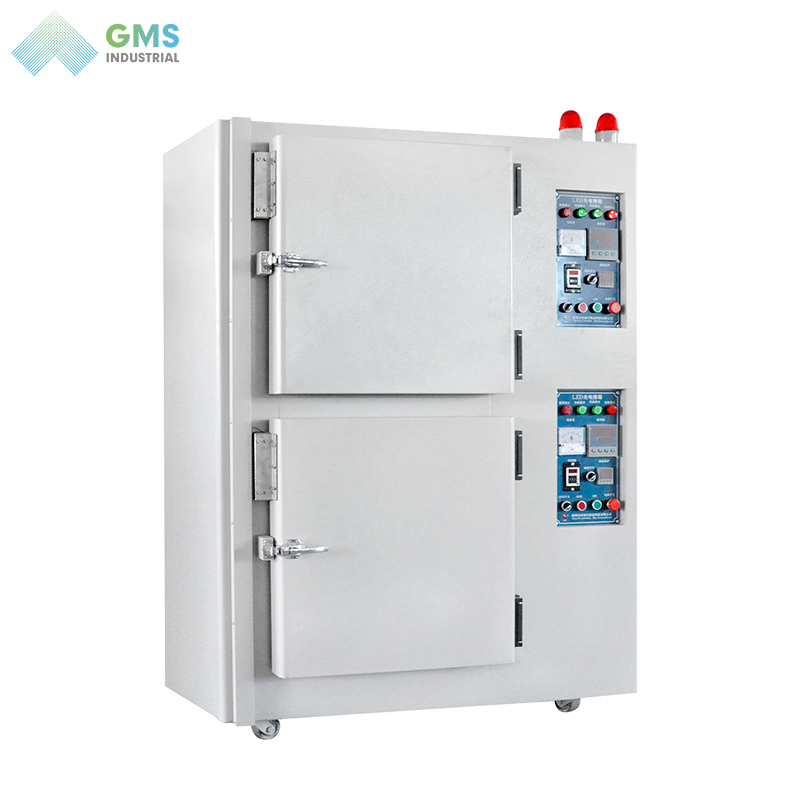

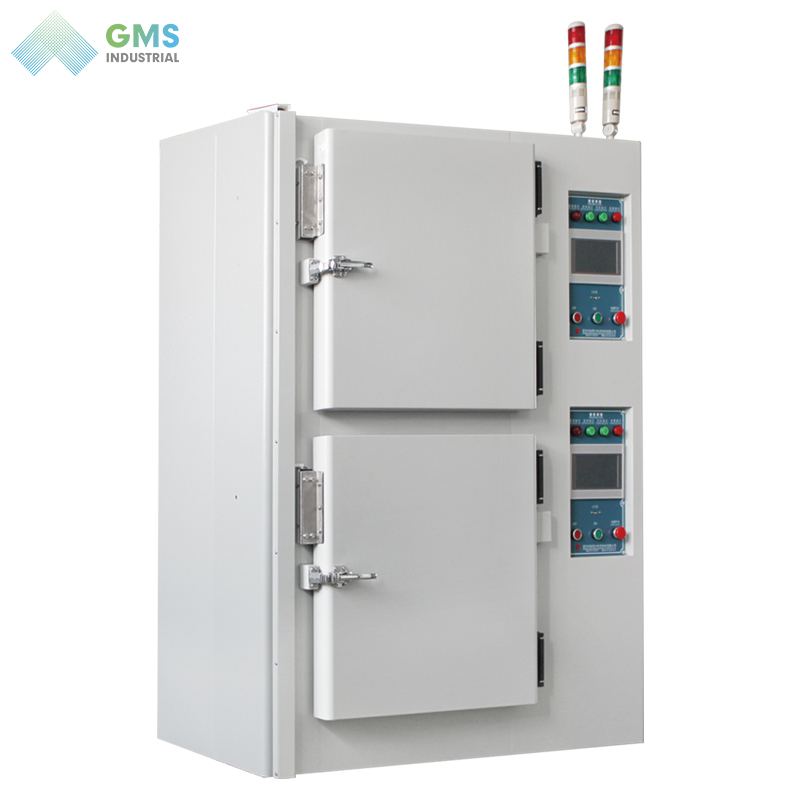

3.Constant Temperature Drying Ovens

Constant temperature drying ovens provide a stable, constant temperature environment, ensuring components remain within the set temperature range throughout the entire baking process. This oven type is suitable for baking R/C components that demand high temperature stability. For instance, when baking temperature-sensitive SMD chips, constant temperature ovens ensure the dehumidification process occurs in a stable thermal environment, preventing performance degradation due to temperature fluctuations.

The baking process for SMT R/C components is a critical step in ensuring their performance and reliability. By selecting appropriate baking standards and oven types, internal moisture and contaminants can be effectively removed, thereby enhancing the insulation performance and service life of the components. In actual production, suitable baking temperatures, durations, and oven equipment should be chosen based on the component type and specific requirements to guarantee stable operation in subsequent use. Additionally, attention must be paid to conditions such as humidity, airflow velocity, and ESD protection during baking to further improve the quality of the baking process.
