Application of Nitrogen Ovens in Semiconductor Packaging Processes

In semiconductor manufacturing, Nitrogen Ovens serve as critical thermal processing equipment for ensuring packaging quality and product performance. Semiconductor packaging involves diverse materials and intricate process steps, requiring precise thermal treatments at various stages such as die attachment, plastic encapsulation, substrate processing, and photoresist curing. These heat treatments facilitate material curing, moisture removal, and stress relief, thereby guaranteeing the production of high-performance semiconductor devices.

1. Operational Principles of Nitrogen Ovens

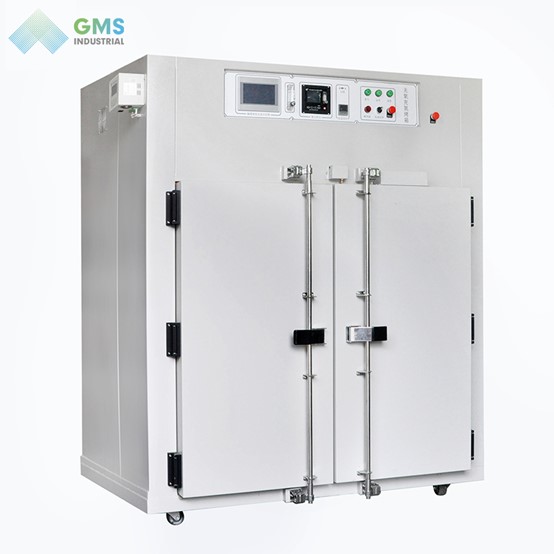

Nitrogen ovens create a low-oxygen inert atmosphere by continuously introducing high-purity nitrogen during thermal processing. This environment effectively prevents oxidation reactions between semiconductor materials and oxygen at elevated temperatures, ensuring material stability. The nitrogen flow simultaneously removes moisture and volatile contaminants, maintaining high cleanliness levels to avoid process interference. Equipped with precision temperature control systems, these ovens achieve uniform and stable thermal profiles through meticulous temperature regulation. This capability ensures consistent heat distribution across products, enabling optimal curing outcomes tailored to specific process requirements.

1. Key Applications in Semiconductor Packaging​​

1. Post-Die-Attachment Curing
   Following chip-to-substrate bonding, components are baked at ~175°C in nitrogen ovens. This process ensures complete curing of conductive silver adhesives under inert conditions, forming robust electrical and mechanical connections. The nitrogen atmosphere prevents oxidation-induced defects such as weak joints or delamination, thereby enhancing device reliability and electrical performance.

2. Post-Molding Cure​​
   After plastic encapsulation, semiconductor packages undergo extended curing (~175°C for 8 hours) to achieve full polymerization of molding compounds. The nitrogen environment minimizes thermal stress while enhancing the material's mechanical strength and chemical resistance. This critical step prevents subsequent package warpage, cracking, and interfacial delamination, significantly improving device longevity and environmental stability.

3. Substrate Dehydration​​
   Moisture-sensitive substrates are pre-baked at 80-120°C for 0.5-8 hours to eliminate absorbed water. This pretreatment prevents void formation and layer separation during subsequent high-temperature processes, ensuring dimensional stability and interfacial integrity in advanced packaging architectures.

4. Photoresist Processing​​
   Nitrogen ovens provide contamination-free environments for photoresist pre-baking and post-exposure curing. During soft-bake cycles, controlled solvent evaporation ensures uniform resist thickness and adhesion. Subsequent hard-bake steps in nitrogen atmosphere enhance resist cross-linking density, improving etch resistance and pattern fidelity for submicron lithography processes.

1. Performance Advantages​​

1. Oxidation Mitigation​​
   The oxygen-free environment preserves material properties of oxidation-prone components such as copper interconnects and solder alloys, maintaining electrical conductivity and interfacial reliability throughout device lifecycle.

2. Particulate Control
   Incorporating HEPA filtration and laminar airflow designs, advanced nitrogen ovens achieve Class 100/1000 cleanliness levels. This contamination control prevents particle-induced short circuits and contact failures, crucial for fine-pitch interconnections in modern packaging.

3. Thermal Precision​​
   Sophisticated PID control systems enable ±3°C temperature uniformity, with programmable multi-zone heating for complex package geometries. This precision ensures repeatable curing kinetics across batch processes, critical for achieving consistent material properties in high-volume production.

1. Conclusion

As an essential tool in semiconductor packaging, nitrogen ovens deliver unparalleled advantages through their inert processing environments, thermal precision, and contamination control capabilities. By optimizing material properties and process reliability, these systems significantly enhance device performance metrics including mechanical robustness, electrical stability, and production yield. Their continued evolution supports the stringent requirements of advanced packaging technologies while reducing manufacturing costs through improved process efficiency.
