Applications of Nitrogen-Filled Ovens in Semiconductor Manufacturing

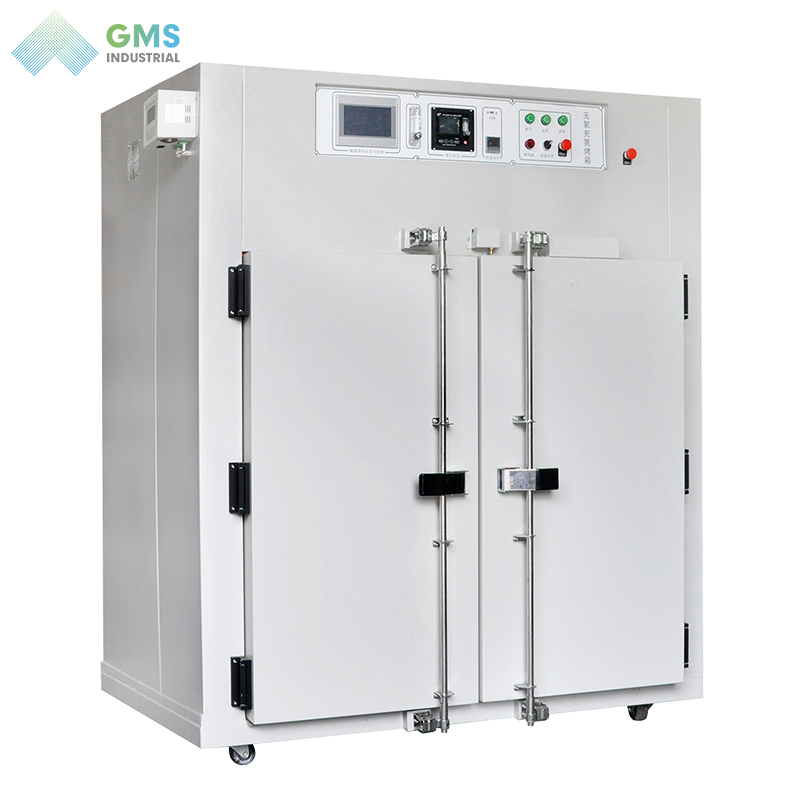

A Nitrogen-filled oven is a type of baking equipment that creates a low-oxygen or oxygen-free environment by introducing nitrogen gas. It is widely used in the semiconductor manufacturing industry. The core function of a nitrogen-filled oven is to prevent semiconductor materials from reacting with oxygen in the air during high-temperature baking, ensuring that the physical and chemical properties of the materials remain unaffected. This, in turn, enhances the quality and reliability of the products. Additionally,nitrogen-filled ovens can effectively remove moisture and impurities from materials, further improving product performance.

Applications of Nitrogen-Filled Ovens in Semiconductor Manufacturing

Nitrogen-filled ovens have a wide range of applications in semiconductor manufacturing, covering multiple stages from material processing to packaging and testing:

1. Chip Packaging: Used to cure packaging materials such as silver paste and epoxy resin, preventing the formation of voids or cracks during the packaging process.
2. Wafer Processing: Used for hard and soft baking of wafers, removing residual solvents from photoresist and enhancing the adhesion of photoresist.
3. Electronic Component Manufacturing: In the aging tests, drying, and preheating of electronic components, nitrogen-filled ovens can provide a stable temperature environment, improving the reliability and performance of the components.
4. Photoresist Curing: In semiconductor chip manufacturing, nitrogen-filled ovens are used to cure photoresist materials such as polyimide (PI) and benzocyclobutene (BCB) resin. This ensures that the photoresist cures in an oxygen-free environment, avoiding oxidation.
5. Substrate Processing: Used to bake substrates before packaging, removing internal water molecules and preventing oxidation.

Baking Processes of Nitrogen-Filled Ovens in Semiconductor Manufacturing

The baking processes of nitrogen-filled ovens need to be precisely controlled based on specific products and process requirements:

1. Temperature Control: The temperature range is typically between room temperature and 300°C, depending on the material and process requirements.
2. Nitrogen Flow Rate: The nitrogen flow rate should be adjusted according to the size of the oven and process requirements to ensure that the oxygen content inside the oven is below 10ppm.
3. Time Control: Baking time can vary from a few minutes to several hours, depending on the material and process requirements.
4. Atmosphere Control: Continuous nitrogen injection is used to maintain a positive pressure inside the oven, preventing the ingress of external air.
5. Cleanliness Requirements: In high-precision applications, such as semiconductor chip manufacturing, nitrogen-filled ovens should be equipped with high-efficiency particulate air (HEPA) filters to ensure a dust-free environment inside the oven.

Precautions for Baking

1. Equipment Inspection: Before use, check whether the nitrogen supply system, heating system, and temperature control system are functioning properly.
2. Oxygen Content Control: Ensure that the oxygen content inside the oven is below 10ppm to prevent oxidation.
3. Temperature Uniformity: Regularly calibrate temperature sensors to ensure uniform temperature distribution inside the oven.
4. Safety Precautions: Operators should wear protective gear to avoid burns or electric shocks.
5. Baking Cycle Limitations: For moisture-sensitive components, the number of baking cycles is usually limited to two.
6. Cleanliness Maintenance: For high-precision applications, regularly replace or clean the filters to maintain the cleanliness inside the oven.

In semiconductor manufacturing, nitrogen-filled ovens effectively prevent oxidation reactions by providing a low-oxygen or oxygen-free environment, ensuring high-quality and high-stability products. Their wide range of applications and flexible process control make them an indispensable baking device in the semiconductor manufacturing process. Proper selection and use of nitrogen-filled ovens can significantly improve the efficiency and reliability of semiconductor manufacturing.
