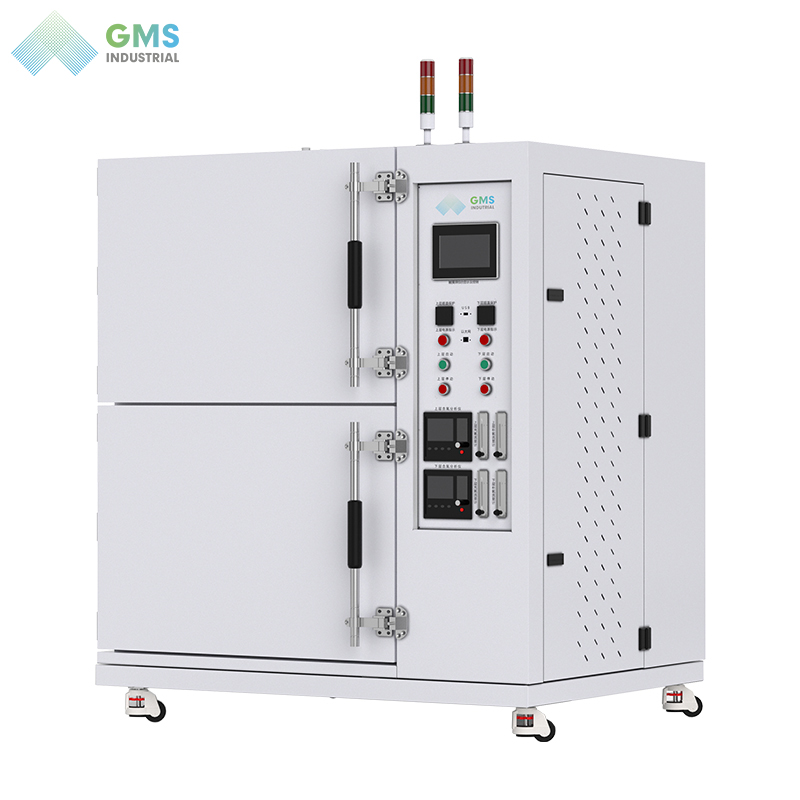

Applications of PI Curing Oxygen-Free Ovens in the Semiconductor Industry

In semiconductor manufacturing, the processes of PI (polyimide) photoresist curing and semiconductor wafer baking have extremely high requirements for equipment performance and process control. The PI curing Oxygen-free oven, specially designed for semiconductor manufacturing processes, provides a precise and efficient thermal treatment solution for PI photoresist curing and semiconductor wafer baking. These processes directly affect product quality and performance. PI photoresist curing must be carried out in an oxygen-free environment to prevent oxidation reactions that could compromise accuracy and performance. Wafer baking, on the other hand, requires a high-temperature, oxygen-free environment to ensure structural stability, remove impurities, and avoid damage. By creating a high-vacuum, oxygen-free environment and offering precise temperature control, the PI curing oxygen-free oven meets process requirements, enhances efficiency, reduces costs, and improves yield rates. It is a key semiconductor baking device for process optimization and product performance enhancement.

Application Fields

The PI curing oxygen-free oven is widely used in semiconductor manufacturing, primarily in the following areas:

1. PI Photoresist Curing: In photolithography, the curing quality of PI photoresist directly impacts the accuracy of the photoresist pattern and the performance of semiconductor devices. Curing in an oxygen-free environment effectively prevents oxidation reactions during the curing process, improving the edge definition and accuracy of photoresist patterns.
2. Semiconductor Wafer Baking: Wafer baking is crucial for stabilizing the internal structure of wafers and removing moisture and impurities. In a vacuum, oxygen-free environment, the boiling point of moisture is lowered, making it easier for moisture within the wafer to evaporate and improving baking efficiency. This also prevents wafer damage from high temperatures.
3. BCB Polymer and PBO High-Temperature Curing: These materials are important in semiconductor packaging and manufacturing. The oxygen-free oven provides an ideal curing environment to ensure material performance stability.
4. Silver Paste Curing: As a conductive material, silver paste is used in semiconductor packaging to connect chips with packaging substrates. Curing in an oxygen-free environment prevents silver paste oxidation, ensuring its conductive properties.

Working Principles

1. Vacuum Environment Creation: The PI curing oxygen-free oven uses an advanced vacuum system to quickly evacuate the internal chamber to a high-vacuum state. During PI photoresist curing, the vacuum environment effectively eliminates oxygen and other gases that could interfere with the process, preventing oxidation reactions and ensuring curing quality. For wafer baking, the vacuum environment lowers the boiling point of moisture, allowing it to evaporate more easily from the wafer and improving baking efficiency. This enables effective wafer baking at lower temperatures, avoiding damage from high temperatures.

2. Oxygen-Free Atmosphere Assurance: The oven is equipped with a special gas replacement device. After evacuation, it can be filled with high-purity inert gases, such as nitrogen, to create an oxygen-free environment. During PI photoresist curing, the oxygen-free atmosphere enhances the purity and stability of the curing reaction, reducing the occurrence of side reactions. In wafer baking, it prevents oxidation of the wafer surface at high temperatures, protecting the metal layers and semiconductor materials on the wafer and ensuring electrical performance.

3. Precision Temperature Control: The oven employs high-precision temperature sensors and an advanced temperature control system to achieve precise temperature regulation. During PI photoresist curing, different types of PI photoresists have specific curing temperature curves. The oven can precisely control the heating rate, insulation time, and cooling rate according to the preset temperature curve. For wafer baking, precise temperature control ensures uniform heating of the wafer, preventing deformation or internal structural damage from localized overheating or cooling, thereby improving yield rates.

Baking Processes

1. PI Photoresist Curing Process

• Pre-Curing:Pre-curing temperatures typically range from 80°C to 120°C, with exact temperatures determined by the PI liquid type and substrate requirements. Pre-curing aims to evaporate some solvents in the PI liquid and initiate PI molecular crosslinking reactions.
• Main Curing: Main curing temperatures are usually higher to ensure complete PI molecular crosslinking. Generally, main curing temperatures range from 200°C to 250°C, but some high-performance PI materials may require higher temperatures, such as 250°C to 450°C. High-temperature baking can also effectively remove solvents like N-methylpyrrolidone (NMP), further enhancing material purity.

2. Semiconductor Wafer Baking Process

• Pre-Baking:Removes moisture from the wafer surface to improve adhesion between the photoresist and wafer. Typically conducted before coating, baking temperatures are generally between 80°C and 100°C for 30 to 60 seconds. Uniform temperature distribution is essential to prevent localized overheating or uneven cooling on the wafer surface.
• Soft Baking: Further removes solvents from the photoresist to solidify it and reduce deformation during exposure. Conducted immediately after coating, baking temperatures usually range from 90°C to 120°C for 60 to 90 seconds. The degree of photoresist curing must be closely monitored to avoid performance degradation from over-baking.
• Hard Baking: Enhances the photoresist's resistance to chemical etching solutions. Conducted after exposure and development, baking temperatures are higher, generally between 120°C and 150°C for 60 to 120 seconds. Uniform heating of the wafer surface is crucial to prevent cracking or detachment of the photoresist due to localized overheating.

The PI curing oxygen-free oven is a thermal treatment solution for PI photoresist curing and semiconductor wafer baking in semiconductor manufacturing. By creating a high-vacuum, oxygen-free environment, it ensures that PI photoresist curing is free from oxidation interference, significantly improving the accuracy of photoresist patterns and the performance of semiconductor devices. Its precise temperature control capability allows semiconductor wafer baking to be conducted under suitable high-temperature conditions, effectively removing moisture and impurities, ensuring wafer structural stability, and avoiding potential wafer damage from high temperatures.
