Baking Process for IC Package Substrates

IC package substrates serve as carriers for encapsulating integrated circuit chips, providing not only physical support for the chip but also enabling electrical connections between the chip and external circuits through metal wiring. Additionally, package substrates offer a degree of thermal dissipation, effectively dissipating heat generated during chip operation to ensure stable chip performance. In electronic devices, IC package substrates are widely used in various high-performance, high-density electronic products, such as processor packaging in smartphones, chip packaging on computer motherboards, and key chip packaging in automotive electronic systems. During the manufacturing process, baking plays a critical role in ensuring the quality and reliability of substrates. It effectively removes residual moisture and organic solvents from the substrate, enhances the structural stability and mechanical strength of the materials, optimizes electrical and thermal performance, and provides a solid foundation for the high-performance operation of the entire electronic device.

I.Importance of the Baking Process for IC Package Substrates

In the production of IC package substrates, the primary purpose of baking is to remove moisture and organic solvents retained during manufacturing. This prevents these substances from causing adverse reactions, such as bubble formation or short circuits, in subsequent packaging processes, thereby improving the reliability and stability of the package substrates. Baking also helps tighten the molecular structure of the substrate material through heating, enhancing its mechanical strength and electrical performance. For example, in the production of high-density interconnect (HDI) package substrates, baking effectively reduces substrate warpage and deformation, ensuring smooth progress in subsequent packaging processes.

II.Functions of Baking for IC Package Substrates

1.Removal of Moisture and Organic Solvents:During the production of IC package substrates, materials may absorb a certain amount of moisture during processing and storage, and organic solvents are often used in some process steps. If these moisture and organic solvents remain in the substrate, they may generate bubbles when heated in subsequent packaging processes, leading to a decline in the electrical performance or even failure of the package substrate. The baking process effectively removes these moisture and organic solvents, ensuring the quality of the package substrate.

2.Enhancement of Mechanical Strength and Electrical Performance:During baking, the molecular structure of the substrate material undergoes changes under the influence of heat, becoming denser. This structural alteration enhances the mechanical strength of the substrate, enabling it to withstand greater pressure and stress in subsequent packaging processes. It also improves the electrical performance of the substrate, reducing resistivity and minimizing signal transmission losses.

3.Reduction of Warpage and Deformation:In the production of high-density interconnect package substrates, due to differences in the coefficients of thermal expansion of materials and stresses induced during processing, substrates are prone to warpage and deformation. Baking can release stresses in the substrate material through uniform heating, thereby reducing warpage and deformation. This ensures the flatness of the package substrate, providing a solid foundation for subsequent chip mounting and packaging processes.

III.Baking Process for IC Package Substrates

1.Baking Temperature and Time: Baking temperature and time are key parameters in the baking process, varying depending on the materials and process requirements of different IC package substrates. Baking temperatures typically range from 100°C to 200°C, and baking durations depend on substrate thickness and material characteristics, generally ranging from 30 minutes to several hours. For example, for ordinary epoxy resin substrates, the baking temperature may be around 150°C with a duration of about 1 hour. For high-performance ceramic substrates, the baking temperature may be higher, around 180°C, with a relatively longer duration, possibly 2 to 3 hours. In actual production, the optimal baking temperature and time should be determined through experimentation and experience based on the specific substrate material and process requirements to achieve the best baking results.

2.Baking Atmosphere: The baking atmosphere is also a critical factor affecting baking results. Common baking atmospheres include nitrogen, air, and vacuum. Nitrogen baking effectively prevents the oxidation of substrate materials at high temperatures, making it suitable for materials sensitive to oxidation. Air baking is a common method suitable for most materials, but it requires careful control of baking temperature and time to avoid material oxidation. Vacuum baking can further enhance baking effectiveness, more thoroughly removing moisture and organic solvents from the substrate, though the equipment cost is relatively high. When selecting a baking atmosphere, factors such as the characteristics of the substrate material, cost, and equipment conditions must be considered comprehensively.

3.Baking Process Control:During baking, precise control of temperature and time is essential to ensure uniformity and stability in baking results. Modern baking ovens are typically equipped with advanced temperature control systems, allowing heating and heat retention according to preset temperature profiles. They can also monitor temperature changes in real time to ensure precise control of baking temperature. During the baking process, attention must also be paid to the placement and quantity of substrates to ensure uniform heat distribution and avoid localized overheating or insufficient heating.

IV.Applicable Baking Ovens for IC Package Substrates

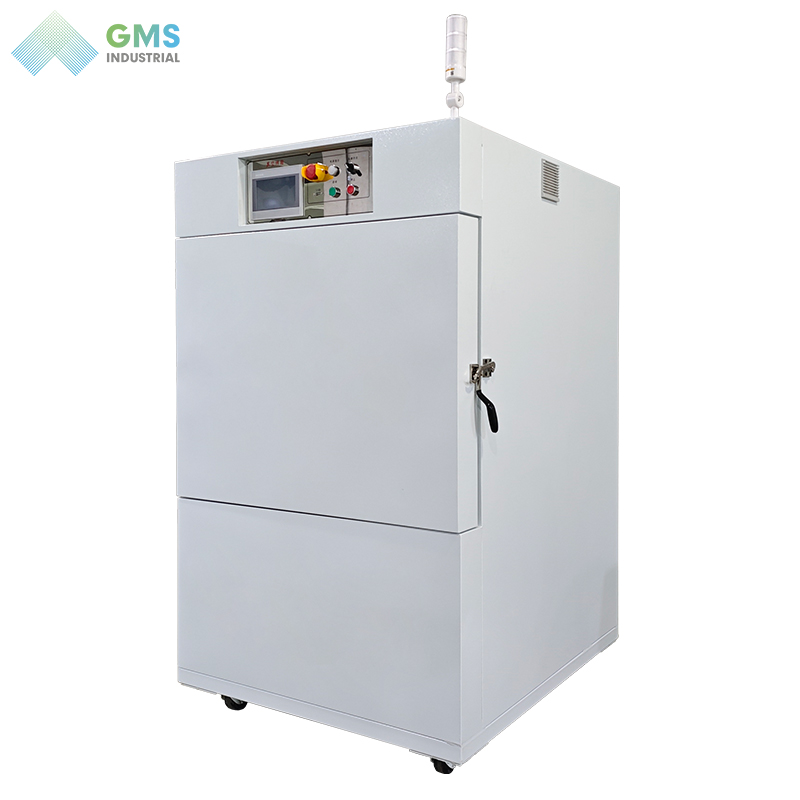

1.Hot Air Circulation Ovens: Hot air circulation ovens are a common type of baking equipment. They use a hot air circulation system to blow heated air evenly onto the substrates, ensuring uniform heating during the baking process. The advantages of hot air circulation ovens are their relatively low equipment cost and simple operation, making them suitable for the baking processes of most IC package substrates. However, their drawback is relatively low thermal efficiency, which may result in longer baking times.

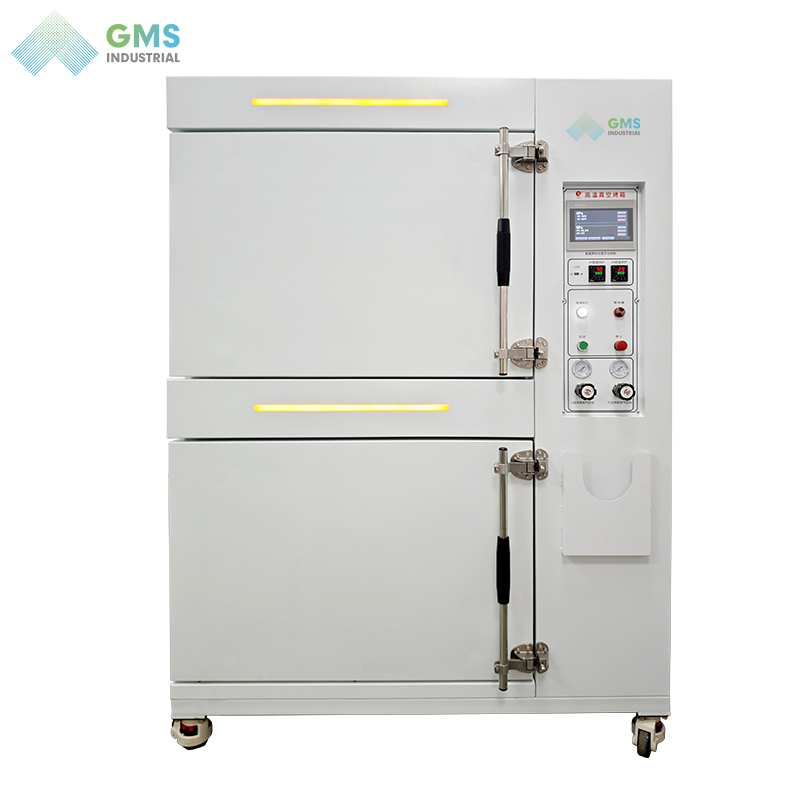

2.Vacuum Ovens:Vacuum ovens provide a vacuum environment during baking, further enhancing baking effectiveness and more thoroughly removing moisture and organic solvents from the substrate. Vacuum ovens are suitable for the baking of high-performance, high-precision IC package substrates, particularly for materials sensitive to oxidation. However, vacuum ovens have relatively high equipment and operating costs, stringent requirements for equipment sealing and vacuum levels, and require regular maintenance and servicing.

3.Nitrogen Ovens:Nitrogen ovens protect the substrate by introducing nitrogen gas during baking, preventing oxidation at high temperatures. This type of oven is suitable for baking materials sensitive to oxidation, such as high-performance ceramic substrates and metal substrates. The advantage of nitrogen ovens is their ability to effectively improve the oxidation resistance of substrates, ensuring substrate quality and performance. However, they also have relatively high equipment and operating costs and require a nitrogen supply system.

The baking process for IC package substrates is a critical step in packaging production, playing a significant role in improving the quality and reliability of package substrates. Through the baking process, moisture and organic solvents in the substrate can be removed, the mechanical strength and electrical performance of the substrate can be enhanced, and warpage and deformation can be reduced. In actual production, appropriate baking temperatures, durations, and atmospheres must be selected based on specific substrate materials and process requirements, and suitable baking Oven equipment must be used to ensure optimal baking results.
