Causes and Solutions for Wafer Oxidation

The silicon wafer is the fundamental substrate of modern semiconductor manufacturing. It underpins integrated circuits, consumer electronics, automotive electronics, and communications technologies—everything that enables today’s devices to be smart, compact, and high-performing. Yet, during processing, transport, and storage, wafers are continuously exposed to ambient conditions that can trigger unwanted native oxidation. Although silicon dioxide (SiO₂) is indispensable for certain device functions, any uncontrolled oxide grown outside the process chamber degrades surface quality and complicates subsequent fabrication steps.

Causes of Wafer Oxidation​

1. Intrinsic Material Property
   Silicon atoms possess a strong affinity for oxygen. Once the wafer surface is exposed to air, a spontaneous chemical reaction forms a native SiO₂ layer.

2. Environmental Drivers

• Temperature: Elevated temperature increases the kinetic energy of silicon atoms, accelerating oxidation.
• Humidity: Moisture adsorbs onto the surface, enhancing surface reactivity and allowing thick oxides to form even at moderate temperatures.
• Oxygen Concentration: Higher partial pressures of O₂ proportionally increase oxidation rates.

3. Contamination & Residues
   Incomplete cleaning leaves organics, metals, or ionic residues that act as heterogeneous nucleation sites, producing patchy, non-uniform oxides.

4. Mechanical Damage
   Scratches, edge chips, or particle impacts expose fresh silicon, creating localized “hot spots” where oxidation proceeds rapidly.

5. Process-Induced Variability
   In thermal oxidation (e.g., furnace or RTP), deviations in temperature, pressure, gas flow, or time can cause over-oxidation or thickness non-uniformity.

Solutions to Mitigate Wafer Oxidation​

1. Environmental Control
   Store wafers in low-oxygen, low-humidity, temperature-stabilized conditions. Nitrogen cabinets (N₂ cabinets) are the industry standard: high-purity N₂ (≥99.999 %) continuously displaces ambient air, holding O₂ and moisture to sub-ppm levels.

2. Rigorous Surface Cleaning
   Adopt multi-step cleaning sequences—ultrasonic agitation, megasonic, DI-water rinses, and optimized chemistries (e.g., SC-1/SC-2, HF-last)—to eliminate organics, metals, and particles without leaving corrosive residues.

3. Mechanical Protection

• Use soft, lint-free carriers and vacuum-compatible cassettes.
• Implement automated handling robots with force-feedback control to avoid scratches or edge chipping.
• Standardize operator protocols for manual transfers.

4. Precision Process Control

• Employ advanced temperature controllers, mass-flow controllers, and real-time ellipsometry to maintain target oxide thickness within ±1 Å.
• Feed metrology data into APC (advanced process control) loops for run-to-run corrections.

5. Protective Coatings
   Where temporary protection is required, spin-coat or ALD-deposit ultrathin organic silanes, ALD Al₂O₃, or noble-metal barriers that can be stripped later without harming the substrate.

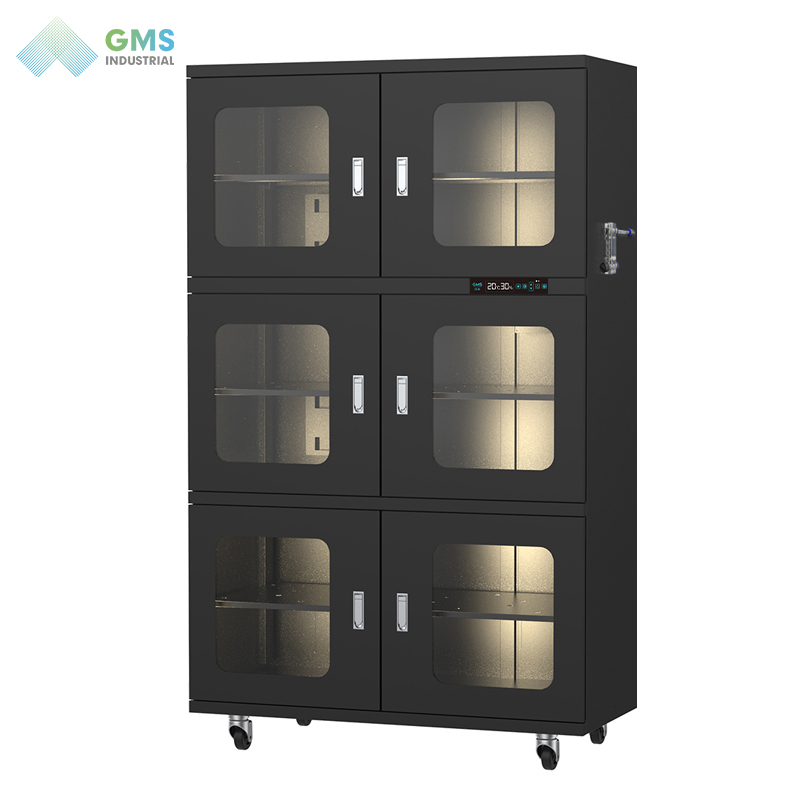

Nitrogen Cabinets: A Focused Solution

• Gas Purging: High-purity N₂ flows through an inlet valve while an exhaust valve vents displaced air, driving residual O₂ down to <0.1 ppm.
• Humidity Suppression: Integrated desiccant or membrane-drying modules maintain RH ≤ 10 %, eliminating moisture-driven oxidation.
• Closed-Loop Monitoring: O₂ and humidity sensors feed real-time data to a PLC. If either parameter drifts, the controller automatically adjusts N₂ flow or activates drying, ensuring continuous compliance.
• Broader Applications: Nitrogen cabinets are not limited to wafer storage. They safeguard PCBs, ICs, precious metals, solar-grade silicon, optical lenses, lunar samples, precision molds, and other moisture- or oxygen-sensitive materials across semiconductor fabs, R&D labs, pharmaceutical plants, and aerospace facilities.

Uncontrolled wafer oxidation compromises both yield and device performance. By adopting nitrogen cabinets, manufacturers create a consistently dry, inert, and particle-free micro-environment that halts native oxide growth. Their proven efficacy in high-volume semiconductor production—and in any industry demanding ultra-clean storage—makes nitrogen cabinets an indispensable pillar of modern process control.
