Curing Mechanism of Liquid Crystal Polyimide

The curing of liquid crystal polyimide (PI) is a complex chemical process, with the key being the cyclization reaction of polyamic acid (PA) under high temperature conditions, where dehydration occurs to form a stable imide structure, thereby transforming it into polyimide. This conversion process turns the originally soluble polyamic acid into an insoluble and thermally stable polyimide film. The cured polyimide film, due to its exceptional chemical stability, mechanical properties, high insulation, heat resistance, and radiation resistance, becomes an indispensable alignment layer material in liquid crystal displays. It is responsible for precisely guiding liquid crystal molecules to align in specific directions and at certain angles, ensuring the excellent display performance of liquid crystal displays.

Ⅰ.Curing Mechanism of Liquid Crystal Polyimide

The curing reaction of liquid crystal PI primarily involves the cyclization reaction of polyamic acid (PA) under high temperature. Polyamic acid is generated through the polymerization of dianhydride and diamine at low temperatures, and it undergoes a series of chemical reactions at high temperatures, eventually transforming into a polyimide film with excellent properties.

1. Pre-polymerization stage: At relatively low temperatures, dianhydride and diamine undergo polymerization to form polyamic acid. The reaction at this stage is relatively mild, with the main purpose being the formation of initial polymer chains.

2. Dehydration cyclization stage: As the temperature increases, the amide bonds in polyamic acid molecules undergo dehydration reactions to form imide rings. This stage is the key to the PI curing reaction, as it determines the structure and properties of the final polyimide film.

3. Post-curing stage: Continued baking at high temperatures allows further cross-linking and reorganization of the polyimide molecular chains, forming a stable and dense film structure. This stage helps enhance the mechanical strength, heat resistance, and chemical stability of the polyimide film.

4. The cured PI film exhibits excellent chemical stability, mechanical properties, high insulation, heat resistance, high dielectric strength, and radiation resistance, making it an ideal material for the alignment layer in liquid crystal displays.

Ⅱ.Ovens Suitable for Liquid Crystal PI Curing

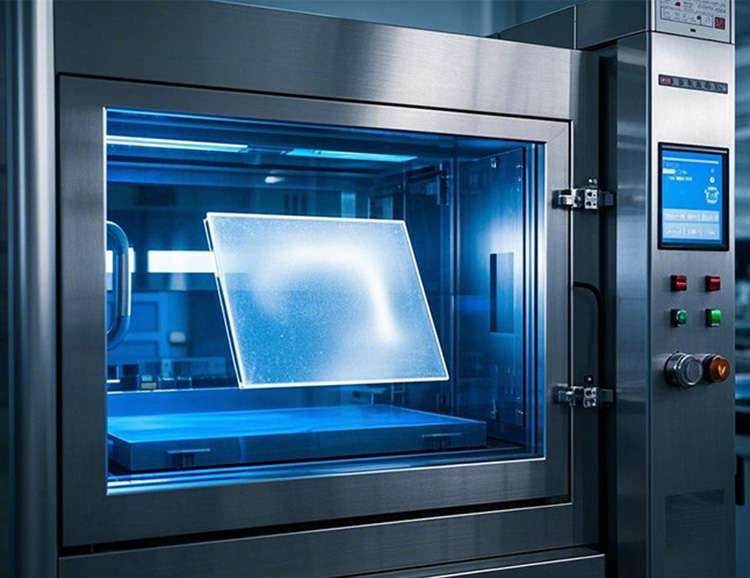

During the liquid crystal PI curing process, Oven equipment plays a crucial role. The following are oven devices suitable for liquid crystal PI curing and their characteristics:

1. High-Temperature PI Curing Ovens:

• Temperature range:Typically capable of covering a wide range from room temperature +50°C to 400°C to meet the temperature requirements of different stages in the PI curing process.
• Oxygen-free environment: PI curing must be conducted in an oxygen-free environment to prevent oxidation of the PI material by oxygen. High-temperature PI curing ovensare usually equipped with nitrogen injection systems to ensure that the oxygen content inside the oven is reduced to extremely low levels (e.g., below 50 ppm).
• Dust-free environment:In liquid crystal display manufacturing, any tiny dust particles or impurities can have a detrimental impact on the performance of the final product. High-temperature PI curing ovens typically employ advanced air purification systems, such as high-efficiency filters and laminar airflow technology, to ensure the interior of the oven is clean and dust-free.
• Temperature control: High-temperature PI curing ovensuse intelligent control systems, such as PLC combined with PC industrial control, to achieve precise temperature regulation. This helps ensure uniform heat treatment of the PI during the curing process, thereby improving product quality.

2. Oxygen-Free and Dust-Free Ovens:

• Oxygen-free environment:Oxygen-free and dust-free ovens are similarly equipped with nitrogen injection systems to ensure extremely low oxygen levels inside the oven. This helps protect the PI material from oxidation, thereby enhancing its performance.
• Dust-free environment: The interior of oxygen-free and dust-free ovens uses advanced air purification systems to ensure a clean and dust-free environment. This helps prevent the impact of dust or impurities on the PI curing process, thereby improving product quality.
• Automated operation: Oxygen-free and dust-free ovens typically adopt automated operation methods, such as touch-screen interfaces and remote monitoring systems. This helps reduce human operational errors and improves production efficiency.

The liquid crystal PI curing reaction is a critical step in the liquid crystal display manufacturing process. Suitable oven equipment not only ensures complete curing of the PI but also improves production efficiency and reduces production costs. High-temperature PI curing ovens and oxygen-free and dust-free ovens are the two main types of oven equipment suitable for liquid crystal PI curing. They feature a wide temperature range, oxygen-free and dust-free environments, and precise temperature control, meeting the various requirements of the liquid crystal PI curing process.
