Humidity Control Standards for Chips in Nitrogen Cabinets

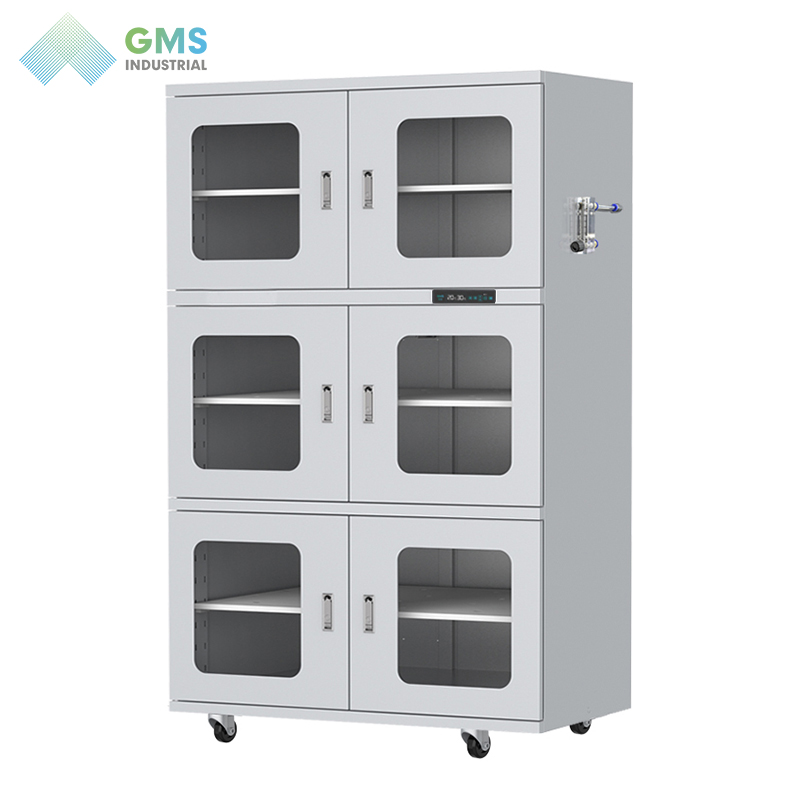

In the semiconductor industry, the storage environment for chips is critical for their performance and longevity. To prevent moisture-related damage, Nitrogen cabinets are widely used. By filling with high-purity nitrogen, these cabinets create a low-oxygen, dry environment that safeguards chips.

I.Importance of Humidity Control in Nitrogen Cabinets

Humidity is a key threat to chip performance. Excessive humidity can cause condensation on chip surfaces, leading to corrosion, oxidation, or short circuits, and may even cause chip failure. Therefore, humidity control in nitrogen cabinets is vital for proper chip storage and use.

Ⅱ.Humidity Control Standards for Nitrogen Cabinets

Humidity Range

● The humidity in nitrogen cabinets storing general chips should ideally be kept between 5%RH and 60%RH. However, this range can vary depending on the chip type, storage duration, and subsequent usage requirements.

● For example, CMOS chips are highly humidity-sensitive and generally require a relative humidity below 60%. MEMS chips are even more sensitive and typically demand a relative humidity below 40%.

Humidity Control Accuracy

● To ensure chip performance and longevity, nitrogen cabinets should have high humidity control accuracy. Modern cabinets are equipped with high-precision humidity sensors and control systems to monitor and adjust internal humidity in real-time.

Humidity Stability

● In addition to control accuracy, humidity stability is crucial. Nitrogen cabinets must maintain a constant humidity level to prevent damage to chips from humidity fluctuations.

Ⅲ.Humidity Control Standards for Chips in Nitrogen Cabinets

The humidity control standards for nitrogen cabinets are determined based on chip type, storage requirements, and industry standards. Here are some common standards:

● CMOS Chips: CMOS chips are highly humidity-sensitive and generally require a relative humidity below 60%. Excessive humidity can cause internal current leakage and potentially lead to chip failure.

● TTL Chips: TTL chips are relatively more tolerant to humidity, but high humidity can still cause internal current leakage and affect performance. The storage humidity for TTL chips is generally required to be below 80%.

● MEMS Chips: MEMS chips are extremely sensitive and require a relative humidity below 40%. High humidity can alter their internal mechanical structure, affecting accuracy and performance.

● Industry Standards: According to industry standards and general recommendations, the humidity control range for chip nitrogen cabinets is usually between 5%RH and 95%RH. To ensure long-term chip storage and safety, it is advisable to maintain a lower humidity range, such as 5%RH to 30%RH.

Ⅳ.Methods for Humidity Control in Nitrogen Cabinets

Nitrogen cabinets control humidity by injecting high-purity nitrogen. Here are some common methods:

● Nitrogen Injection: Nitrogen cabinets are typically connected to external nitrogen sources like liquid nitrogen tanks, nitrogen generators, or high-pressure nitrogen cylinders. These sources provide dry nitrogen with extremely low oxygen content.

● Humidity Sensors: Equipped with humidity sensors, nitrogen cabinets monitor internal humidity in real-time. When the humidity exceeds the set value, the sensors trigger alarms or automatic adjustment systems.

● Automatic Adjustment System: Based on humidity sensor signals, the automatic adjustment system regulates nitrogen inflow to maintain stable internal humidity.

● Alarm Function:When the humidity in the nitrogen cabinet exceeds the set range, the alarm system promptly alerts staff to address the issue.

Proper humidity control in nitrogen cabinets is essential for chip performance and longevity. By accurately controlling humidity range, improving control precision and stability, nitrogen cabinets effectively protect chips from environmental interference. In practice, select appropriate humidity control standards based on chip type, storage duration, and usage requirements, and regularly monitor and adjust to ensure long-term chip effectiveness.
