Humidity Control Standards for Chips in Nitrogen Cabinets

As a core component of electronic devices, chips demand rigorous storage conditions. Nitrogen cabinets, which inject high-purity nitrogen to create a low-oxygen, dry environment, are widely used for chip storage. This environment effectively prevents oxidation, moisture damage, and corrosion of chips, metals, and semiconductor devices. Humidity control is a key performance indicator for nitrogen cabinets.

I. The Impact of Humidity on Chips

Humidity significantly affects chip performance and stability. Excessive humidity can cause chips to absorb moisture, leading to several issues:
● Corrosion: Moisture can react chemically with metals or semiconductor materials on the chip surface, causing corrosion.
● Short Circuits: Moisture can form conductive paths inside the chip, leading to short circuits.
● Performance Degradation: Moisture alters the electrical properties of chip materials, resulting in performance degradation.

To ensure chip quality, it is essential to strictly control humidity in nitrogen cabinets.

II. Humidity Control Standards for Nitrogen Cabinets

The humidity control standards for nitrogen cabinets are determined based on the type of chip, storage requirements, and the design and functionality of the cabinet. Below are some common humidity control standards:
● General Standard: For most chips, the relative humidity in nitrogen cabinets should be maintained between 5%RH and 60%RH. This range ensures a dry environment for chip storage while preventing issues caused by excessively high or low humidity.
● Strict Standard: For special chips such as integrated circuits and sensors, more stringent humidity control may be required. Some manufacturers specify a relative humidity of below 10%RH to ensure chip stability in extreme conditions.
● Real-time Monitoring and Adjustment: Nitrogen cabinets should be equipped with high-precision temperature and humidity monitoring systems and automatic adjustment devices. These systems monitor humidity changes in real-time and automatically regulate the dehumidification system to maintain the desired humidity level.

III. Methods for Achieving Humidity Control in Nitrogen Cabinets

To meet the above humidity control standards, nitrogen cabinets employ advanced technologies and measures, including:
● Dehumidification Systems: Nitrogen cabinets should be equipped with efficient dehumidification systems, such as dehumidification cores, condensation dehumidification, adsorption dehumidification, or physical dehumidification. These systems automatically adjust their operation based on humidity changes to maintain the desired humidity level.
● Sealing Performance: The sealing performance of nitrogen cabinets is crucial for maintaining a stable internal environment. High-quality sealing materials and technologies should be used to ensure effective isolation from the external environment when the cabinet is closed.
● Nitrogen Supply and Control Systems: Nitrogen cabinets should have a stable nitrogen supply and control system to ensure continuous nitrogen supply and stable concentration. The control system should also feature real-time monitoring and automatic adjustment capabilities to respond to environmental changes.

IV. Advantages of Humidity Control in Nitrogen Cabinets

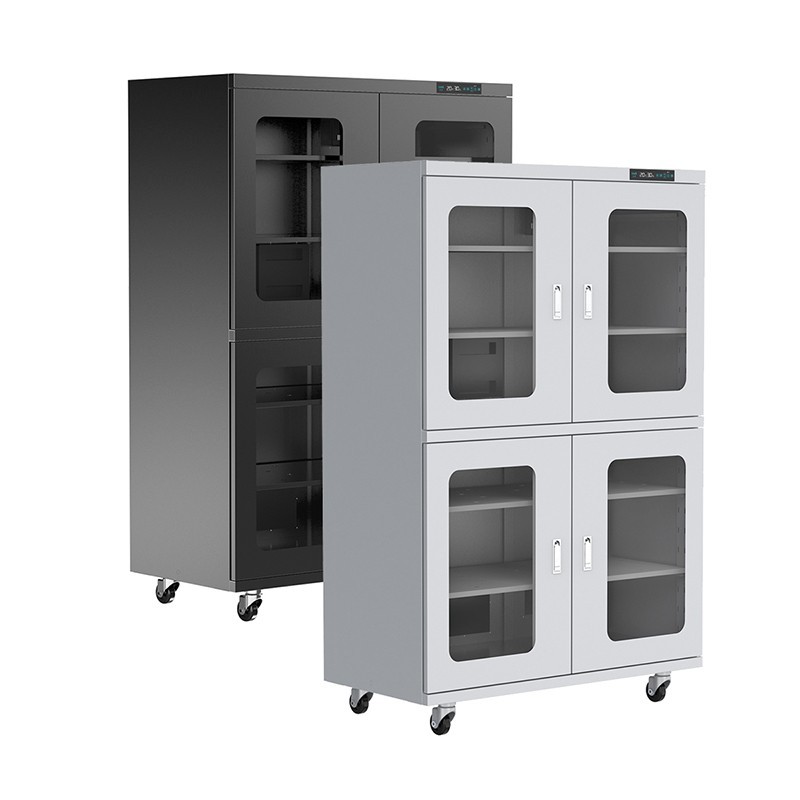

GMS nitrogen cabinets offer significant advantages in humidity control. Their excellent dehumidification systems can quickly reduce humidity and maintain stability. The intelligent control system monitors humidity changes in real-time and automatically adjusts the dehumidification system to keep humidity within the desired range. Additionally, GMS nitrogen cabinets are equipped with oxygen sensors and electromagnetic valves to precisely control oxygen levels. By injecting high-purity nitrogen, oxygen concentration is reduced, further preventing chip oxidation and moisture damage.

The humidity control standards for chips in nitrogen cabinets are relatively broad but should be adjusted based on the chip type, storage requirements, and the functionality and design of the nitrogen cabinet. GMS nitrogen cabinets provide an ideal storage environment for chips with their superior performance and reliable quality. Users should follow the instructions carefully to ensure proper settings and operation.
