Post-Press Baking Process for CSP

The post-press baking process for CSP (Chip Scale Package) is a critical thermal treatment step in semiconductor packaging. It is primarily applied for stress relief, material curing, and interfacial bonding enhancement after the pressing process in CSP structures, widely used in the packaging of various microelectronic devices such as LEDs, integrated circuits, and sensors. This process is typically performed after pressing and before subsequent testing or assembly, covering advanced packaging products that employ lamination processes, including FC-CSP (Flip Chip Chip Scale Package), WLCSP (Wafer-Level Chip Scale Package), and BGA-type CSP. Its core functions are to promote the full curing of packaging materials, ensure tight bonding between the chip and substrate, effectively release internal stress, and enhance product reliability and performance. It is commonly applied in chip packaging manufacturing for consumer electronics, automotive electronics, communication equipment, and other fields.

Functions of Post-Press Baking for CSP

1. Curing Packaging Materials:In CSP packaging, materials after pressing typically require baking to complete the curing process. For example, when using silicone or other organic materials for encapsulation, baking can promote the formation of chemical bonds in the materials, transitioning them from liquid or semi-solid states to fully solid states, thereby providing sufficient mechanical strength and electrical insulation properties.
2. Enhancing Bonding Strength:The baking process allows the adhesive between the chip and the packaging substrate to fully cure, strengthening the bond between the chip and substrate and preventing chip detachment during subsequent use due to external forces or thermal stress.
3. Reducing Stress:By controlling the baking temperature and time, thermal stress generated during the packaging process can be effectively reduced. This is crucial for improving packaging reliability and extending product lifespan.
4. Removing Moisture and Impurities: The baking process effectively removes moisture and impurities from the packaging materials, preventing issues such as bubbles or expansion during subsequent use.

Post-Press Baking Process for CSP

1. Temperature Control:Baking temperature is one of the key factors affecting packaging quality. The baking temperature range for CSP after pressing is between 80°C and 150°C, depending on the packaging materials used and process requirements. For example, in certain LED packaging processes, the baking temperature is typically set at 150°C.
2. Time Control:Baking time is usually determined based on the curing characteristics of the materials. Baking times vary, ranging from a few hours. For instance, in some processes, the baking time is 5-6 hours. Baking for too long or too short a time may result in incomplete or excessive curing, affecting packaging quality.
3. Heating Rate: To reduce thermal stress, the heating rate during baking typically needs to be controlled. The heating rate should remain at a low level to ensure uniform heating of the materials.

Applicable Ovens for Post-Press Baking of CSP

1. Hot Air Circulation Ovens:These ovens use a hot air circulation system to ensure uniform temperature inside the chamber, improving thermal efficiency. They are suitable for curing and baking various chip packaging materials and can meet the temperature uniformity requirements of different processes. For example, in the underfill curing process for chips, hot air circulation ovens ensure uniform temperature across the chip area, enabling even curing of the underfill material and ensuring consistent curing quality.
2. Vacuum Ovens: These ovens can perform baking in a vacuum environment, effectively removing air and moisture from the materials. In certain specialized packaging processes, such as baking and curing packaging materials that are prone to oxidation or highly sensitive to moisture, vacuum ovens prevent material oxidation and moisture retention, enhancing packaging reliability and stability. For instance, in the packaging of some high-end chips, vacuum ovens are used for heat sink adhesive curing to avoid the adhesive being affected by oxygen during the curing process, ensuring reliable bonding effects.

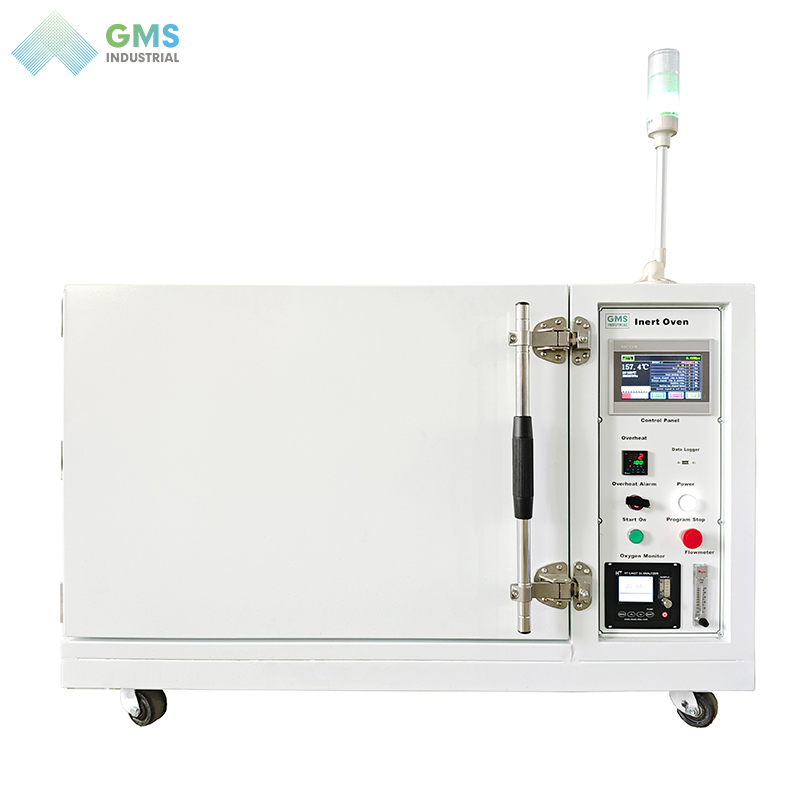

3. Nitrogen-filled ovens:These ovens operate in a nitrogen environment, suitable for items requiring oxygen exclusion to prevent oxidation or combustion. During the post-press baking process for CSP, if the materials are sensitive to oxygen, nitrogen-filled ovens provide an inert environment, ensuring the materials are not oxidized during baking.
4. Precision Ovens:These ovens feature high temperature control accuracy, making them suitable for drying or curing precision components or materials that require strict temperature stability. During the post-press baking process for CSP, if precise temperature control is required, precision ovens can meet this demand, ensuring baking quality.
5. Tunnel ovens:These are suitable for mass production. Products continuously pass through heating zones with different temperature areas via a conveyor belt, with each temperature zone independently controlled to form a continuous process curve. This offers high production efficiency but requires significant equipment investment and floor space.

The post-press baking process for CSP is an indispensable step in electronic manufacturing. By curing adhesives, relieving internal stress, removing moisture, and accelerating chemical reactions, it significantly enhances packaging quality and reliability. Through reasonable control of temperature, humidity, and heating uniformity, and by selecting the appropriate oven type, the performance of CSP after packaging can be effectively optimized to meet the high-precision demands of modern electronic manufacturing.
