Process Requirements for Cleanliness in Wafer Thermal Processing

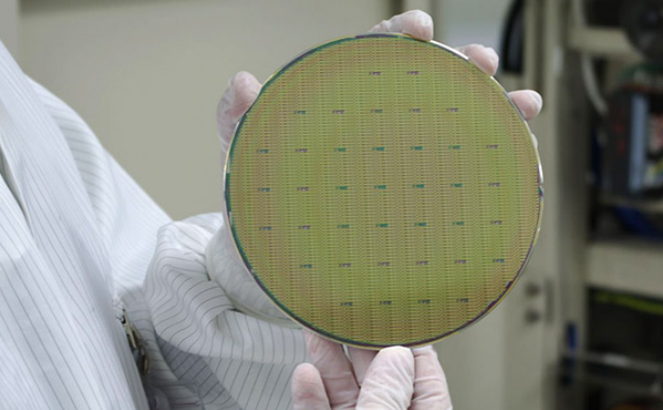

In the semiconductor manufacturing industry, wafers undergo high-temperature processing to improve their physical and chemical properties. To ensure that wafers remain uncontaminated during this process, operations are typically carried out in a highly clean environment. Cleanrooms achieve this by installing high-efficiency filtration systems, controlling airflow, and utilizing antistatic, seamless, and easily cleanable materials, thereby keeping the number of airborne particles to an extremely low level. The cleanliness requirements for wafer thermal processing extend beyond the control of airborne particles; they also encompass strict control over microorganisms, chemicals, and other sources of contamination. These measures are implemented to ensure the cleanliness of the wafer surface, thereby enhancing the performance and reliability of semiconductor devices and meeting the demand for high-quality, high-reliability products in the modern electronics industry.

I.Purposes of Wafer Thermal Processing

1.Stress Relief: During wafer manufacturing, various process operations (such as cutting, grinding, etching, etc.) and the material properties themselves can induce stress within the wafer. If left unaddressed, this stress can affect the precision and reliability of subsequent process steps and even cause the wafer to crack during further processing. A primary objective of thermal processing is to relieve these stresses, enhancing the stability and reliability of the wafer.

2.Crystal Structure Optimization: The crystal structure on the wafer has a crucial impact on the performance of semiconductor devices. Thermal processing can promote crystal growth and optimization, improving crystal quality and integrity. This contributes to enhanced conductivity, thermal resistance, and other key properties of semiconductor devices.

3.Material Property Improvement: Thermal processing can also alter the physical and chemical properties of the wafer material, such as changing its resistivity, carrier concentration, and mobility. These property changes can further optimize the performance of semiconductor devices to meet specific application requirements.

4.Preparation for Subsequent Processes: Wafer thermal processing also prepares the way for subsequent process steps (such as photolithography, ion implantation, metallization, etc.). By adjusting thermal processing parameters, the surface roughness, cleanliness, and chemical activity of the wafer can be optimized, thereby improving the efficiency and yield of subsequent processes.

II.Process Requirements for Cleanliness in Wafer Thermal Processing

1.Cleanliness Grade: Wafer thermal processing demands extremely high levels of cleanliness, typically ranging from ISO Class 1 to ISO Class 7, with critical production processes even requiring ISO Class 4 or higher. This means that the number of airborne particles in the cleanroom must be controlled within an extremely low range to ensure that the wafers remain uncontaminated during thermal processing.

2.Particle Control: To maintain cleanliness within the cleanroom, high-efficiency filtration systems such as HEPA and ULPA filters are installed. These filters continuously remove airborne particles and microorganisms, ensuring that the air cleanliness in the cleanroom meets the required standards. With their high efficiency, these filters can capture particles as small as 0.1 micrometers, effectively preventing wafer contamination.

3.Airflow Management: The organization of airflow within the cleanroom is also a crucial factor in ensuring cleanliness. Through a reasonable layout of supply and return air vents, uniform and stable airflow can be ensured, avoiding vortices and dead zones. This effectively controls the suspension and diffusion of airborne particles and microorganisms, further maintaining the cleanliness of the cleanroom.

4.Temperature and Humidity Control: During wafer thermal processing, the temperature and humidity in the cleanroom also need to be precisely controlled. Suitable temperature and humidity ranges ensure the stability of the production environment, thereby guaranteeing stable product performance.

5.Other Requirements: In addition to the aforementioned cleanliness requirements, the cleanroom for wafer thermal processing should have antistatic and easily cleanable floor and wall materials, as well as excellent sealing performance and lighting facilities. To reduce the risk of contamination carried by personnel, the cleanroom should also be equipped with personnel purification facilities such as air showers and shoe changing areas.

III.Technical Characteristics of Suitable Ovens

1.High-Precision Temperature Control: The temperature control accuracy of an oven is one of the key indicators for measuring its performance. An ideal oven should be equipped with a high-precision PID main controller, capable of achieving a temperature control accuracy of ±0.1°C, to minimize temperature fluctuations during the wafer annealing process.

2.Temperature Uniformity: To ensure consistent annealing effects across all parts of the wafer, the oven interior should be designed with a reasonable airflow structure, such as an inverted U-shaped airflow channel, combined with adjustable baffles, to facilitate full convection of hot air and achieve uniform temperature distribution within the oven. Typically, the temperature uniformity of the oven in a constant temperature and no-load state should be controlled within ±1.5°C (at 100°C) to ±5.0°C (at 350°C).

3.Wide Temperature Range: The temperature range for wafer thermal processing processes is usually quite broad. The oven should have a wide temperature adjustment range to meet different process requirements. Additionally, the oven should be capable of rapid heating and cooling to shorten the annealing cycle and improve production efficiency.

4.High Cleanliness: The oven interior should adopt imported H14 high-temperature-resistant high-efficiency filters, with a filtration efficiency of over 99.995% for 0.3µm particles, ensuring that the cleanliness inside the oven reaches Class 100 or higher. The oven exterior and interior walls should be made of corrosion-resistant and high-temperature-resistant materials, such as A3 cold-rolled steel plate and SUS304# clean stainless steel plate, to reduce the generation and accumulation of contaminants.

5.Structural Design: The structural design of the oven should fully consider its operating environment and process requirements. For example, to reduce the outward transmission of heat from the oven interior and improve energy utilization efficiency, the oven should be equipped with a thick insulation layer. The sealing performance of the oven is crucial for maintaining internal cleanliness and temperature stability. The oven shelves should be adjustable in height and capable of increasing or decreasing in number to accommodate annealing requirements for wafers of different sizes and quantities.

6.Safety Protection: As a high-temperature equipment, the safety protection requirements for the oven are extremely strict. It should be equipped with safety facilities such as an electrical control system with built-in leakage circuit breakers, control circuit fuses, and over-temperature prevention devices to ensure stable equipment operation and operator safety.

The process requirements for cleanliness in wafer thermal processing reflect the semiconductor manufacturing industry's pursuit of high quality and efficiency. By strictly controlling cleanliness and optimizing oven design, it is possible to ensure that wafers remain uncontaminated during thermal processing, thereby improving product yield and reliability.
