Purpose of Baking PBCA and BGA Packages
In the field of electronics manufacturing, PBCA (Plastic Ball Grid Array) and BGA (Ball Grid Array) packaging technologies are widely used due to their advantages of high density, high performance, and good thermal dissipation. However, because their packaging materials are hygroscopic, BGA packages readily absorb moisture from the air during storage, transportation, and handling. During subsequent high-temperature processes like soldering, this absorbed moisture rapidly vaporizes and expands. This can cause internal package defects such as swelling, deformation, cracking, delamination, popcorn effect, and micro-cracks, severely compromising the chip's performance and lifespan. Baking PBCA and BGA packages to remove internal moisture is therefore a critical step to ensure their stability and reliability in subsequent manufacturing stages.
Ⅰ. Purposes of Baking PBCA and BGA Packages
- Moisture Removal
PBCA and BGA chips are susceptible to moisture absorption from ambient humidity during manufacturing, transportation, and storage. If not removed, this moisture rapidly turns to steam during the high-temperature reflow soldering process. The resulting expansion generates significant internal stress, potentially leading to package cracking, solder joint failure, or damage to internal circuitry. According to IPC standards, the moisture content within the package must be controlled within specified limits to ensure soldering process safety. Baking gradually evaporates the internal moisture, mitigating these risks.
- Improved Solder Joint Quality
During baking, surface oxides and contaminants on the chip's terminations are reduced alongside moisture evaporation. This improves the solderability of the component terminations, allowing solder to wet and bond more effectively, thereby enhancing solder joint quality and reliability. With dry packages, solder joints form more robustly, exhibiting better wetting to the pads and terminations. This reduces defects like cold solder joints and insufficient wetting, improving both the electrical performance and mechanical strength of the connections. Studies indicate that baking can increase the solder joint strength of packages by over 30%.
- Enhanced Package Reliability
Removing moisture slows down the rate of internal chemical reactions, such as corrosion between metalized traces or current leakage, reducing the risk of long-term failures and improving operational stability and reliability. Baking also helps relieve internal stresses by allowing material molecules to relax and reorganize, preventing cracking and enhancing mechanical integrity. Experiments show that baked chips can exhibit a service life extended by more than twice under high-temperature and high-humidity conditions compared to non-baked counterparts.

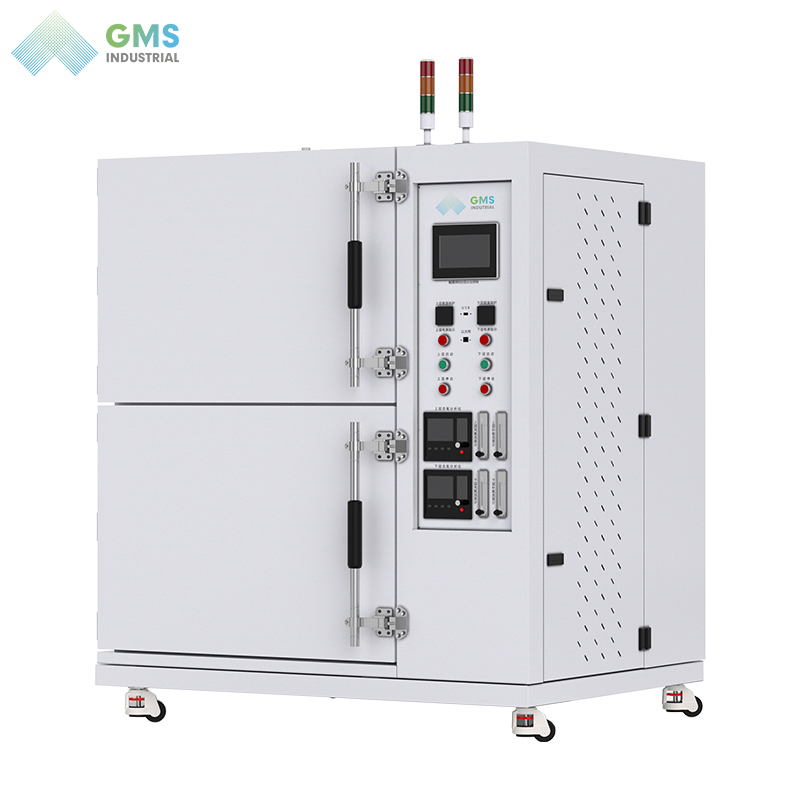

Ⅱ. Suitable Oven Types for Baking PBCA and BGA Packages
These ovens inject nitrogen to reduce oxygen levels, minimizing oxidation during baking. They are suitable for oxidation-sensitive components, effectively protecting surface finishes. While offering a controlled low-oxygen environment, they typically involve higher equipment and operational costs. Nitrogen flow and pressure are adjustable, allowing optimization based on component requirements. They are essential for baking high-end, sensitive chips.
Designed for short-duration baking at elevated temperatures, these ovens often feature rapid heating and cooling capabilities to enhance throughput. They are ideal for BGA packages requiring brief baking cycles and can typically operate within a range of 100°C to 300°C, meeting most BGA baking needs. Their efficiency makes them common in high-speed production lines.
- CleanOxygen-free ovens
These ovens are specifically designed for components demanding an extremely pure baking environment, such as precision electronic components and semiconductor dies. By purging with inert gases (e.g., nitrogen), they create a high-temperature, low-oxygen, and clean atmosphere, effectively preventing contamination and oxidation. Their internal design minimizes particulate ingress, ensuring cleanliness crucial for sensitive devices.
Vacuum ovens lower the internal pressure to accelerate the evaporation of moisture and the removal of volatile contaminants. They are suitable for applications requiring efficient baking at lower temperatures, thus reducing potential thermal damage to sensitive components. The vacuum level can be adjusted based on specific package requirements, making them ideal for temperature-sensitive devices.
- Convection Ovens
Convection ovens are the most common type used for this purpose. They circulate heated air to ensure uniform temperature distribution within the chamber, promoting consistent baking results for all components. Offering precise temperature control and larger capacities, they are well-suited for high-volume baking of SMT components like BGAs. Their efficient design makes them a staple in large-scale manufacturing.
Ⅲ. Optimization of Baking Process Parameters for PBCA/BGA Packages
- Temperature Control
Baking temperature is a critical parameter. Excessively high temperatures risk thermal degradation or oxidation of internal materials, while insufficient temperatures fail to effectively remove moisture. Per IPC standards and manufacturer recommendations, baking temperatures typically range from 100°C to 150°C. The optimal temperature should be determined based on the specific package's moisture sensitivity level (MSL) and thermal tolerance.
- Time Control
Baking duration depends on the package's moisture absorption level and the selected temperature. Longer baking times generally improve moisture removal but increase production cycle time and potential thermal exposure. Standard baking times per IPC guidelines typically range from 2 to 24 hours. The ideal time should be established experimentally, balancing moisture removal efficacy against thermal budget and throughput requirements.
- Atmosphere Control
The baking atmosphere significantly influences the outcome. Different ovens provide specific environments (e.g., low-oxygen in nitrogen ovens, low-pressure in vacuum ovens). The choice should align with the component's sensitivity; for instance, oxidation-sensitive packages require nitrogen-purged ovens, while vacuum ovens are better for removing certain contaminants.
- Humidity Control
Low humidity within the baking chamber facilitates faster moisture evaporation from the packages. Advanced ovens may include humidity control systems to monitor and maintain low humidity levels. For highly hygroscopic packages, using ovens with effective humidity control is advantageous.
In conclusion, the baking process for PBCA and BGA packages is vital for ensuring their performance and reliability in subsequent manufacturing steps. By effectively removing moisture, baking prevents defects caused by vaporization during soldering, enhances solder joint quality, and improves the package's mechanical and electrical integrity. In practice, selecting the appropriate oven type and strictly adhering to established baking standards and optimized parameters are essential for ensuring package stability and reliability, ultimately enhancing the overall quality and performance of the electronic product.
