Selection Between Moisture-Proof Cabinets and Nitrogen Cabinets in the Electronics Manufacturing Industry

In the electronics manufacturing industry, the quality of components directly determines the reliability and lifespan of the final product. Electronic components are extremely sensitive to environmental temperature, humidity, and factors like moisture ingress and oxidation corrosion, which can degrade component performance. From SMT mounting to semiconductor packaging, and from precision optical elements to IC chips, if the storage environment fails to meet standards, it can lead to severe consequences such as internal circuit short circuits, solder joint delamination, and chip swelling or cracking, potentially resulting in the rework or scrapping of entire batches. Establishing a scientific and professional component storage system, selecting appropriate professional storage equipment for components with different characteristics, is crucial. The mainstream professional storage solutions are Moisture-proof cabinets andnitrogen cabinets, each with its unique advantages and application scenarios.

Ⅰ.Why Electronic Components Require Professional Storage

Electronic components, especially integrated circuits, chips, PCB boards, and optoelectronic devices, are highly sensitive to environmental temperature, humidity, oxygen, and contaminants. Moisture in the air can permeate component packaging, causing internal cracks due to the "popcorn effect" during high-temperature soldering. Oxygen reacts with metal leads to form oxide layers, affecting solder wettability and conductivity. Static electricity and dust can also damage sensitive devices. Ordinary shelves or desiccants alone cannot meet long-term storage requirements. Professional storage equipment creates a stable, clean, and low-humidity environment for electronic components by controlling humidity, isolating oxygen, and eliminating static electricity, thereby extending component storage life and ensuring production stability and product consistency.

Ⅱ.Features and Advantages of Moisture-Proof Cabinets

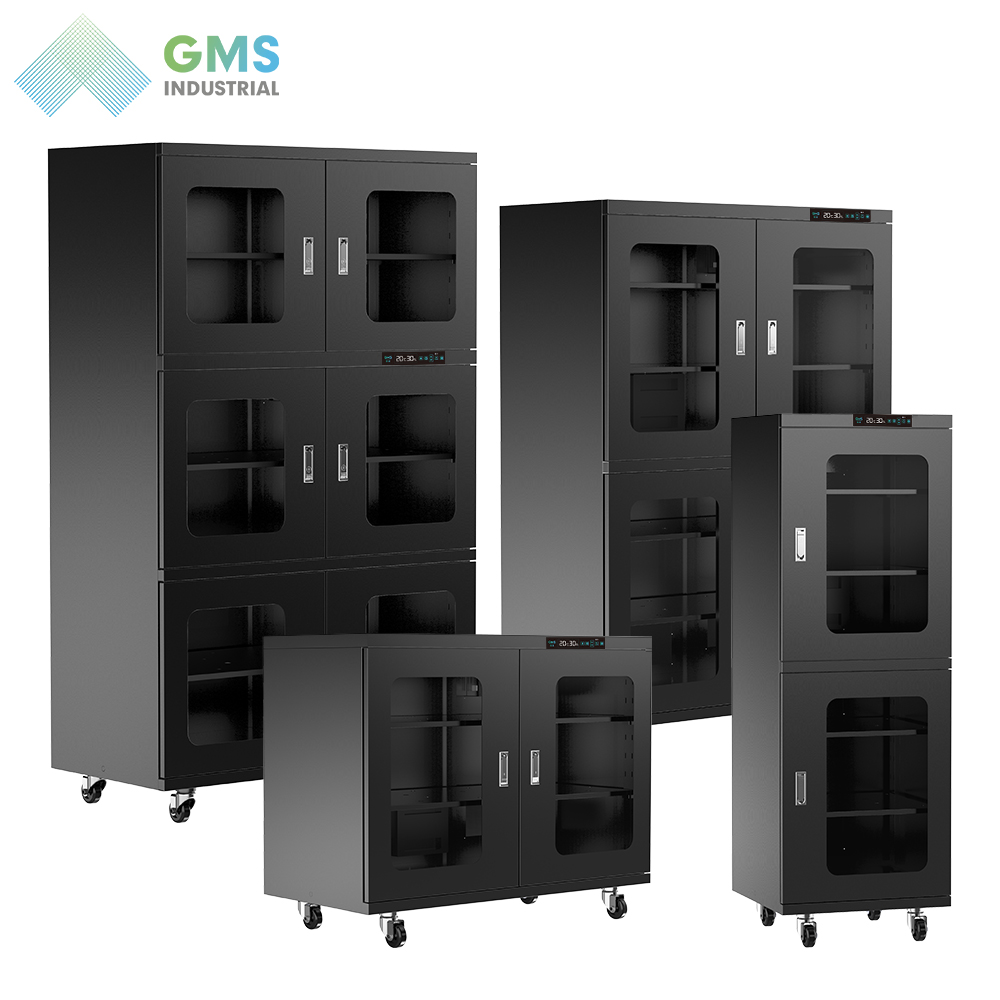

1. Physical Molecular Sieve Dehumidification, Eco-Friendly and Efficient:GMS moisture-proof cabinets use physical molecular sieve dehumidification, where the moisture-absorbing material can be regenerated and reused, offering stable and long-lasting dehumidification. This method features low power consumption, no noise, no thermal effect, and no magnetic interference, ensuring no electromagnetic or thermal damage to stored precision electronic components. Compared to traditional heating dehumidification, physical adsorption dehumidification is gentler, making it suitable for storing temperature-sensitive materials.
2. Three Humidity Control Levels, Covering a Wide Range of Needs:GMS moisture-proof cabinets offer three control options: medium humidity (10~20%RH), low humidity (20~60%RH), and ultra-low humidity (below 10%RH), meeting different storage needs from common electronic parts to high-precision chips. Users can flexibly choose based on the material's humidity sensitivity for precise matching.
3. High-Precision Sensing and Intelligent Display:Moisture-proof cabinets use imported Honeywell temperature and humidity sensors with an error of less than ±2%RH, temperature display accuracy of ±1°C, and are equipped with a microcomputer-controlled large digital LED display for synchronized temperature and humidity reading, ensuring accurate and stable data. The humidity setting features memory function, requiring no reset after power loss, offering convenient operation.
4. Modular Design and Flexible Upgrades:GMS moisture-proof cabinets feature a unique modular design. Components from parts to the temperature/humidity display, control system, and dehumidification host module can be quickly replaced, simplifying maintenance and significantly improving efficiency. The cabinets have expansion ports, allowing the addition of automatic nitrogen filling to upgrade to a nitrogen-moisture-proof combination cabinet, achieving multiple functions in one unit.
5. Complete Anti-Static System:Anti-static moisture-proof cabinets use anti-static paint on the cabinet body, with a stable surface resistance of <10^9Ω, effectively eliminating static accumulation, preventing ESD damage, and providing reliable electrostatic protection for sensitive components.

Ⅲ.Features and Advantages of Nitrogen cabinets

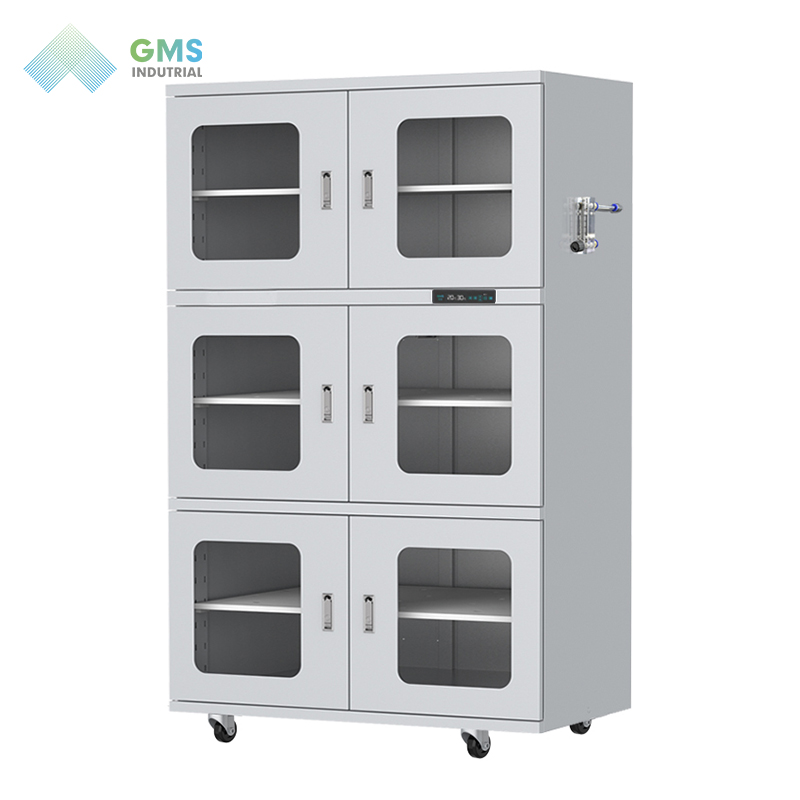

1. Intelligent Nitrogen Filling Control, Efficient and Energy-Saving:The GMS energy-saving nitrogen cabinet series uses an advanced intelligent nitrogen filling control system where the humidity setpoint automatically controls the nitrogen intake. When the cabinet humidity reaches the set value, the system automatically cuts off the nitrogen supply; when humidity exceeds the setpoint, it intelligently opens the supply. This automatic programmable sensing system saves over 60% nitrogen compared to manual filling, significantly reducing operating costs while ensuring storage effectiveness.
2. Rapid Dehumidification and Excellent Anti-Oxidation Performance:Nitrogen cabinets can quickly reduce humidity to below 5%RH, with a recovery time within 5 minutes after door opening/closing, making them ideal for production sites with frequent access. Nitrogen, as an inert gas, effectively displaces oxygen inside the cabinet, fundamentally inhibiting metal oxidation, providing dual protection for highly oxidation-prone precision components.
3. Improved Cabinet Cleanliness:The continuous inflow of dry nitrogen creates a slight positive pressure environment, preventing ingress of external dusty, humid air, enhancing cabinet cleanliness. This is particularly important for materials with high cleanliness requirements like semiconductors and optical lenses.
4. Flexible Combination Applications:GMS nitrogen cabinets can be expanded into combination cabinets with physical dehumidification plus nitrogen moisture-proofing. While enhancing dehumidification, they can also function as ordinary electronic dry boxes even without nitrogen, achieving dual use in one machine, saving equipment investment and usage costs.
5. Full-Range Humidity Adjustability:Nitrogen cabinets have a humidity control range of 1%-60%RH, allowing arbitrary setpoint adjustment within this range for greater adaptability. They come with standard nitrogen connectors for simple and quick flow adjustment and offer optional oxygen content monitoring, enabling multi-parameter synchronized display of temperature, humidity, and oxygen content.

Ⅳ.Applicable Storage Ranges for Moisture-Proof Cabinets and Nitrogen Cabinets

1. Applicable Storage Range for Moisture-Proof Cabinets:Moisture-proof cabinets primarily address moisture ingress and are suitable for components sensitive to humidity but with relatively controllable oxidation risk.

• Medium Humidity Cabinets (20-60%RH):Suitable for storing photographic equipment, optical lenses, tapes, banknotes, stamps, documents, calligraphy, and paintings.
• Low Humidity Cabinets (10-20%RH):Suitable for storing printed circuit boards, various electronic parts, precision electronic instruments, metal materials, and chemical raw materials.
• Ultra-Low Humidity Cabinets (below 5%RH):Used for storing high-precision materials like SMT components, wafers, IC chips, BGA packages, industrial precious metals, and special chemical products.

2. Applicable Storage Range for Nitrogen Cabinets:Nitrogen cabinets add anti-oxidation functionality on top of moisture protection and are suitable for precision materials extremely sensitive to both humidity and oxidation. Their storage range can be divided by material type and industry:

• Electronics and Semiconductor Industry:Especially recommended for SMT components, IC chips, LED/LCD packages, semiconductor wafers, and BGA modules. The metal leads, solder pads, or surface platings of these materials are highly prone to oxidation in air, which directly affects soldering quality and product performance.
• Optics and Precision Instrument Industry:Suitable for precision optical lenses, observation optical equipment, and high-precision measuring instruments. A nitrogen environment effectively prevents lens mold and metal part oxidation, ensuring long-term stability of optical performance.
• Materials, Chemical, and Research Fields:Used for storing humidity- and oxygen-sensitive non-ferrous metals, special chemicals, powdered materials, and experimental samples. In research institutions, pharmaceutical factories, and hospitals, they are also widely used for storing drug raw materials/excipients, reference standards, and surgical precision instruments that require long-term maintenance of ultra-low humidity and oxygen-free conditions.

Professional storage of electronic components is a crucial foundation for ensuring product quality and improving production yield. Moisture-proof cabinets and nitrogen cabinets, as two mainstream storage solutions, each have their unique technical advantages and applicable fields.

Moisture-proof cabinets, with physical molecular sieve dehumidification at their core, offer advantages such as no nitrogen requirement, low operating costs, environmental friendliness, no noise, and modular easy maintenance. They are suitable for storing general precision electronic components, optical equipment, and PCB boards sensitive to humidity.

Nitrogen cabinets, on the other hand, add intelligent nitrogen filling for anti-oxidation on top of moisture protection. Through automatic sensing control, they achieve high efficiency and energy savings, quickly establishing a low-oxygen, low-humidity environment. They are particularly suitable for storing high-value materials prone to oxidation, such as semiconductor chips, precious metal contacts, and precision optical elements.
