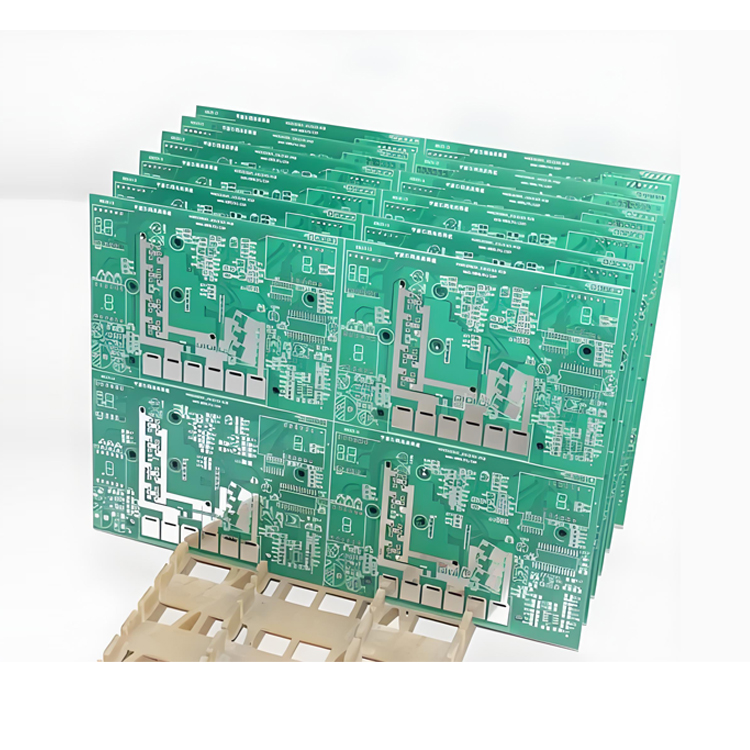

Selection of Ovens for PCB Baking in the Semiconductor Industry

In semiconductor manufacturing and packaging testing, Printed Circuit Boards (PCBs) serve as carriers for chips and electrical interconnections. Their physical and electrical stability directly determines the reliability of the final device. Since PCB substrates (such as FR-4, polyimide, etc.) are hygroscopic, they absorb environmental moisture easily during storage and transportation. Without pre-treatment before subsequent high-temperature processes (such as reflow soldering or wave soldering), vaporized water inside can generate high pressure, leading to delamination, blistering, or pad oxidation. Baking is not merely a drying process but a critical heat treatment procedure that ensures semiconductor product yield.

Ⅰ Why Bake PCBs in the Semiconductor Industry?

PCB materials, whether FR-4 epoxy resin fiberglass composites or high-end ceramic substrates, possess natural hygroscopic properties. Micro-pores exist within the resin matrix and glass fabric of the laminate, continuously absorbing moisture when exposed to air. When a PCB with excessive moisture content enters a reflow oven or wave soldering tank, the internal moisture instantly vaporizes and expands under high temperatures, generating immense steam pressure. This directly causes interlayer delamination, blistering, or cracking—a phenomenon known in the industry as "popcorning." Additionally, moisture can cause oxidation on pad surfaces, reducing solder wetting and leading to defects like cold solder joints or bridging. For high-density interconnect (HDI) boards, IC substrates, and multilayer boards used in semiconductors, any minor soldering defect can trigger signal integrity issues or early failure. Therefore, baking is an essential process to ensure product reliability.

Ⅱ The Role of PCB Baking in Semiconductors

1. Moisture Removal: This is the most fundamental purpose of baking. By heating at a specific temperature, absorbed moisture is evaporated and expelled, preventing layer delamination, blistering, or bursting caused by rapid water expansion during high-temperature soldering. Baked PCBs remain dry, ensuring circuit stability and reliability.

2. Stress Relief: During manufacturing, PCBs accumulate internal stress due to temperature fluctuations during lamination, drilling, etching, and other mechanical processes. The baking process allows material molecules to rearrange through heat treatment, effectively releasing this internal stress. This helps stabilize board dimensions and reduces warpage deformation caused by stress release during subsequent processing or use.

3. Improved Soldering Results: Baked PCBs have drier, cleaner surfaces with reduced pad oxidation, significantly enhancing solder wetting. This helps form full, reliable solder joints, minimizing cold solder joints and improving assembly quality and product reliability.

4. Prevention of Ionic Contamination: If moisture in PCBs is not removed, it may react with residues during high-temperature processing to form ionic contamination. This increases the risk of electrochemical migration around solder joints, leading to short circuits or degraded insulation performance. Baking effectively reduces this risk, extending electrical performance and product lifespan.

5. Dimensional Stability: Baking significantly improves PCB flatness and dimensional stability. This is particularly crucial for high-density, high-precision semiconductor packaging, ensuring alignment accuracy during subsequent processes like placement and soldering, and reducing defects caused by board bow and twist.

Ⅲ How to Select an Oven for Semiconductor PCB Baking

Selecting the right oven requires consideration of several key technical indicators and actual production needs:

1. Temperature Control Accuracy and Uniformity:Semiconductor-grade PCB baking demands strict temperature control, typically stabilizing within 120 \pm 5^\circ\text{C}. Ovens should be equipped with high-precision PID intelligent temperature control systems, achieving accuracy of \pm 1^\circ\text{C} or better. Temperature uniformity across the chamber is vital, generally required within \pm 2\% to \pm 5\%, to avoid uneven baking caused by local overheating or insufficient heating.

2. Temperature Range and Heating Rate:Based on the material properties of the PCB (e.g., Tg - Glass Transition Temperature), baking temperatures are usually set between 100^\circ\text{C} and 125^\circ\text{C}, never exceeding the Tg point. The oven should feature a controlled heating rate, typically 3^\circ\text{C} to 4^\circ\text{C} per minute, to prevent thermal shock that could cause deformation or internal damage.

3. Cleanliness Requirements:Semiconductor manufacturing requires extremely high environmental cleanliness. The oven interior should be made of stainless steel with smooth, dead-zone-free surfaces for easy cleaning and to prevent particle contamination. Excellent sealing performance is necessary to keep out external dust.

4. Atmosphere Control Capability:For high-precision PCBs requiring high reliability, atmosphere control is necessary. Nitrogen Ovens orvacuum ovens create low-oxygen or oxygen-free environments, effectively preventing oxidation during high-temperature baking and protecting the solderability of pads and traces.

5. Cooling Method and Rate Control:The cooling process post-baking is equally critical. Ovens should be equipped with air-cooling systems capable of precise cooling rate control, generally not exceeding 3^\circ\text{C} per minute, to avoid thermal stress-induced warpage.

6. Safety Protection Features:Industrial ovens must have comprehensive safety systems, including independent over-temperature protection (separate from the main controller), motor overload protection, and leakage protection. For scenarios involving special materials, explosion-proof designs should be considered to ensure operator and equipment safety.

7. Capacity and Automation Compatibility:Select an oven volume appropriate for production scale. Consider compatibility with upstream and downstream equipment for automated production lines. High-volume continuous production may favor Tunnel ovens, while low-volume, high-mix production suits batch-type box ovens.

Ⅳ Applicable Ovens for Semiconductor PCB Baking

Common oven types in this field include:

1. Hot Air Circulating Oven:The most widely used equipment for PCB baking. It uses internal heating elements and fans to force hot air circulation, ensuring uniform heating. Advantages include excellent temperature uniformity, moderate cost, and simple operation/maintenance. Suitable for most standard PCB moisture removal and curing processes. Available in bench-top or vertical configurations, with single or double doors to fit different layouts.

2. Vacuum Oven:Vacuum ovens bake in a sealed chamber under low pressure. Under vacuum, the boiling point of water decreases, allowing efficient moisture removal at lower temperatures—ideal for temperature-sensitive PCBs or thick boards. The vacuum environment isolates oxygen, drastically reducing oxidation risks, and penetrates deep into micro-pores to remove embedded moisture. Key specifications include vacuum level range and pump type, selected based on PCB structure (single-sided, double-sided, multilayer, HDI).

3. Nitrogen Oven:These ovens maintain a low-oxygen or oxygen-free inert atmosphere by purging with high-purity nitrogen. They are specifically designed for high-precision PCBs, BGA substrates, and boards with easily oxidized surface finishes (e.g., Electroless Nickel Immersion Gold - ENIG). The nitrogen environment prevents pad oxidation, maintains excellent solderability, reduces ionic contamination, and enhances long-term reliability.

4. Oxygen-Free Oven:Designed for curing specialized materials like Polyimide (PI), Flexible Printed Circuits (FPC), and Liquid Crystal Polymer (LCP). These ovens maintain extremely low oxygen levels (typically below 20 ppm) throughout the baking cycle. Widely used for PI, BCB, and LCP curing, photoresist baking, and electronic ceramic drying where oxygen sensitivity is critical.

5. Tunnel Oven:A continuous conveyorized system where PCBs move through heating zones. Advantages include high throughput, uninterrupted operation, stable heating profiles, and high automation compatibility with production lines. Ideal for high-volume, single-product manufacturing, though less flexible for low-volume, high-mix scenarios.

Semiconductor PCB baking is a critical process for ensuring product quality and reliability, aiming to thoroughly remove internal moisture, eliminate manufacturing stress, improve soldering performance, and prevent ionic contamination. The choice of oven directly determines the effectiveness of the baking process and the final quality of the product. In practice, selection or customization should be based on the specific material properties, structural complexity, production volume, and requirements for cleanliness and atmosphere control.
