Semiconductor Wafer Baking Process and Precautions

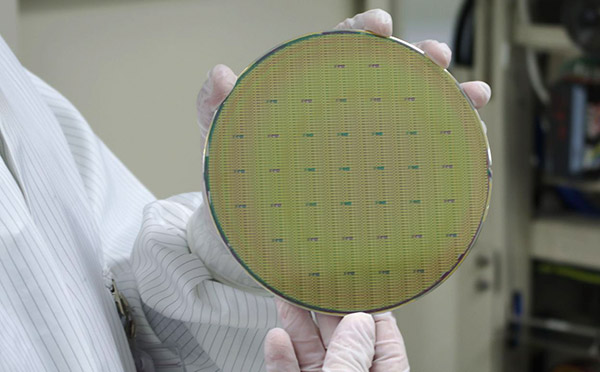

In the precision-driven processes of semiconductor manufacturing, wafer baking is a critical step in lithography. It ensures uniform curing of photoresist, strong adhesion to the wafer substrate, and directly impacts the success of subsequent etching and ion implantation steps, ultimately influencing device performance and yield. The baking process involves several stages, including pre-baking, soft baking, and post-exposure hard baking, each designed to remove moisture, enhance adhesion, cure the photoresist, and improve its etch resistance. Strict control of the environment, wafer inspection, precise temperature and time settings, real-time monitoring, and safety precautions are essential to ensure baking quality and process reliability.

1.Wafer Baking Process

The primary goal of wafer baking is to remove moisture and solvents from the wafer surface, ensuring strong adhesion between the photoresist and the wafer, resulting in a flat and uniform photoresist coating. The process typically includes the following steps:

1．Pre-Baking

●Purpose: Remove moisture from the wafer surface and enhance photoresist adhesion.

●Process Details: Conducted before photoresist coating, typically at temperatures of 80°C to 100°C for 30 to 60 seconds. Uniform heating is critical to avoid localized overheating or uneven cooling.

2．Soft Baking

●Purpose: Further remove solvents from the photoresist, cure it, and minimize deformation during exposure.

●Process Details: Performed immediately after photoresist coating, at temperatures of 90°C to 120°C for 60 to 90 seconds. Monitor the curing degree of the photoresist to prevent over-baking, which may degrade its properties.

3．Post-Exposure Hard Baking

●Purpose: Enhance the photoresist’s etch resistance to withstand chemical solutions during etching.

●Process Details: Conducted after exposure and development, at temperatures of 120°C to 150°C for 60 to 120 seconds. Ensure uniform heating to prevent cracking or peeling of the photoresist due to localized overheating.

2.Precautions for Wafer Baking

To ensure baking quality and process reliability, the following precautions must be observed:

1．Environmental Control: Place baking equipment in a clean, dry, and well-ventilated environment to prevent wafer contamination. Strictly control temperature and humidity to ensure consistent baking results.

2．Wafer Inspection: Inspect wafers for defects such as scratches or cracks before baking. Ensure the wafer surface is clean and free of dust, oil, or other contaminants that could affect baking quality.

3．Temperature and Time Settings: Adjust baking temperature and time based on photoresist type, thickness, and process requirements. Incorrect settings may compromise photoresist performance and coating quality.

4．Real-Time Monitoring: Closely monitor temperature readings and wafer status during baking. Stop the process immediately if anomalies are detected and investigate the cause.

5．Safety Precautions: Use protective gear (e.g., heat-resistant gloves, safety goggles) to avoid burns or accidents. Ensure adequate space around the equipment to prevent overheating or fire hazards.

6．Equipment Maintenance: Regularly maintain and service baking equipment, especially critical components like heating elements and temperature sensors, to ensure accuracy and stability.

3.Suitable Baking Equipment

1．High-Precision Temperature Control System

●Uses PID control algorithms and high-precision sensors for temperature accuracy within ±0.5°C, meeting stringent process requirements.

●Features self-learning and adaptive functions to automatically adjust heating power and minimize temperature fluctuations.

2．Uniform Heating Design

●Multi-layer heating plates and fan circulation systems ensure uniform heating. Temperature uniformity is calibrated regularly to maintain consistent baking results.

3．Efficient Filtration System

●Equipped with HEPA filters to remove dust and particles, ensuring a clean baking environment with filtration efficiency >99.97%. Filters are regularly replaced and cleaned.

4．Intelligent Control System

●Touchscreen or PLC-based automation enables easy parameter settings (temperature, time). Features fault diagnosis, alarms, and data logging for process analysis.

By precisely controlling temperature, time, and environmental factors during baking, semiconductor wafer baking ensures effective moisture removal, enhanced photoresist adhesion, and etch resistance, laying a solid foundation for subsequent processes. Equipment like the GMS Wafer Baking Oven, with its high-precision temperature control, uniform heating, efficient filtration, and intelligent features, plays a vital role in improving baking quality, process stability, production efficiency, and product yield.
