The baking process of semiconductor glass substrate

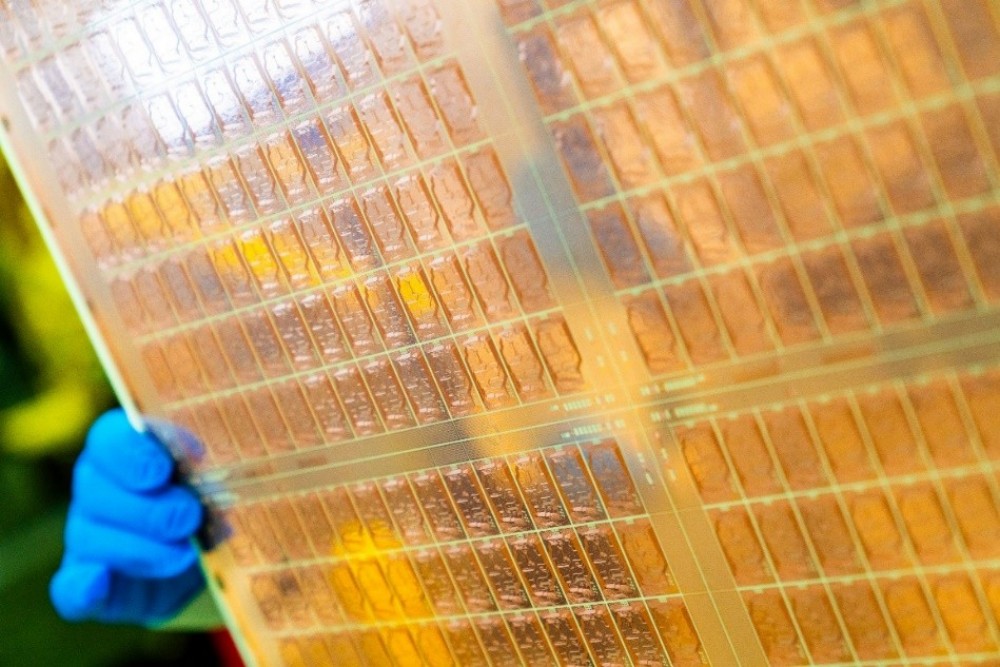

The baking process of semiconductor glass substrates is a critical step in the semiconductor manufacturing industry. As one of the core components, the quality and performance of glass substrates directly impact the stability and reliability of the final products. The baking process is an essential part of the production process of semiconductor glass substrates. By precisely controlling the baking temperature and time, moisture and organic residues on the substrate surface can be removed, the cleanliness and adhesion of the substrate can be improved, and internal stresses can be eliminated, ensuring smooth subsequent processing and production. The main objectives of baking semiconductor glass substrates are to remove surface contaminants, enhance cleanliness, and improve the adhesion of the glass substrate to materials such as photoresist and thin films. Temperature control during the baking process is crucial and directly affects the baking results and the final product quality.

I. Requirements for Temperature Control Precision

The baking of semiconductor glass substrates demands extremely high precision in temperature control, which is reflected in the following aspects:

1.High-precision Temperature Control: During the baking process, temperature control precision is typically required to be within ±0.5°C or even less. High-precision temperature control ensures uniform heating of the glass substrate, preventing issues such as stress concentration, deformation, or cracking due to localized overheating.

2.Temperature Uniformity: In addition to high-precision temperature control, temperature uniformity within the oven is also very important. Temperature uniformity is usually required to be within ±2.5°C (during no-load testing) to ensure uniform heating of the glass substrate throughout the baking process, avoiding quality inconsistencies caused by temperature differences.

3.Heating and Cooling Rates: Heating and cooling rates are also important factors affecting the baking effect. A reasonable heating rate ensures that the glass substrate reaches the required temperature in a short time, while the cooling rate affects the cooling effect after baking. Typically, the heating and cooling rates should be determined based on the specific baking process.

II. Selection of Suitable Ovens

To meet the high-precision temperature control requirements for baking semiconductor glass substrates, the following types of ovens are commonly chosen:

1.Semiconductor Precision Oven: A semiconductor precision oven is a baking equipment specifically designed for the semiconductor manufacturing industry. It typically uses a PID digital display instrument for temperature control and features high precision, stability, and reliability. It also has multiple safety protection systems, such as over-temperature protection and circuit protection, to ensure the safety and stability of the baking process.

2.Vacuum oven: In some special processes, such as when it is necessary to remove gases from the surface of the glass substrate or perform vacuum annealing, a vacuum oven is a better choice. A vacuum oven creates and controls a vacuum environment through a high vacuum pump and pressure differential valve, ensuring no oxygen interference during the baking process.

3.Programmable Oven: A programmable oven has multi-segment temperature and time control functions, allowing presetting and adjustment according to different baking process requirements. This makes programmable ovens more flexible and adaptable in the baking process of semiconductor glass substrates.

4.Clean oven: The baking process of semiconductor glass substrates requires a high level of cleanliness to avoid the impact of contaminants on product quality. A clean oven typically adopts a class 1000 cleanroom standard and is equipped with high-efficiency filters and a clean processing system to ensure the cleanliness requirements during baking.

5.High-temperature Oven: A high-temperature oven is commonly used for baking glass substrates. It typically adopts a PID dual digital display intelligent temperature control system with an over-temperature protection device, capable of precisely controlling the temperature range and featuring good temperature uniformity. High-temperature ovens are suitable for various processes such as preheating and curing of metal and steel parts, annealing and sintering of hardware components, and sintering of Teflon.

III. Considerations for Oven Selection and Use

1.Select an Oven Based on Process Requirements: When choosing an oven, full consideration should be given to the type of semiconductor glass substrate, baking temperature, time, and whether special environments such as vacuum or cleanliness are required. The size and capacity of the oven should also match actual production needs.

2.Ensure Oven Precision and Stability: Choose an oven with high-precision temperature control and good stability to ensure temperature control precision and uniformity during the baking process. The oven's control system should be reliable and stable to avoid baking failures caused by system malfunctions.

3.Regular Maintenance and Upkeep: Regularly maintain and upkeep the oven, such as cleaning the heating elements, checking the temperature sensors, etc., to ensure normal operation and extend the service life of the oven. The oven should be calibrated and verified regularly to ensure the accuracy and stability of its temperature control.

4.Pay Attention to Safety Precautions: When using the oven, follow relevant safety operating procedures and wear appropriate personal protective equipment, such as safety glasses and gloves. Ensure that the oven's electrical and heating systems are safe and reliable to avoid fires or personal injuries caused by electrical faults or high temperatures.

The temperature control precision and oven selection in the baking process of semiconductor glass substrates are crucial for product quality and performance. By reasonably selecting the oven type, ensuring high-precision temperature control and good stability, and paying attention to safety precautions, high quality and efficiency in the baking process of semiconductor glass substrates can be ensured.
