The Principle of Baking to Eliminate Static Electricity on LCD Panels

LCD panels are increasingly being used in various electronic devices, and they often face the challenge of static electricity during production and usage. Static electricity can be generated through various physical processes, such as contact, friction, conduction, and electrostatic induction. During the production, storage, and transportation of LCD panels, the accumulation of static electricity may lead to issues like screen flickering, distorted images, or even complete failure. Not only can static electricity degrade the performance of LCD panels and cause various malfunctions, but it may also permanently damage their internal structures. Baking technology has emerged as a key method to address this issue and eliminate static electricity from LCD panels.

Ⅰ.Generation and Hazards of Static Electricity

Static electricity primarily arises from the contact and separation of different materials. When two materials come into contact, charge carriers transfer across the contact surface due to differences in electrochemical potential, forming a dipole layer. When the materials separate, the charges in the dipole layer cannot fully balance, leaving one material positively charged and the other negatively charged. This is how static electricity is generated.

The hazards of static electricity are particularly significant during the production of LCD panels. The operational principle of LCD panels relies on stable and precise electric field control for display effects. Electrostatic discharge (ESD) can interfere with the electric field, altering the arrangement of liquid crystal molecules and subsequently affecting image quality. ESD may also damage the internal electronic components of LCD panels, leading to display failure.

Ⅱ.Principle of Baking to Eliminate Static Electricity

The principle of baking to eliminate static electricity is mainly based on two aspects: thermal treatment and charge neutralization.

1.Thermal Treatment: During the baking process, heating the LCD panel accelerates the movement and dissipation of internal charges. When the LCD panel is heated, the movement of its internal charges becomes more active, facilitating the release and dissipation of static charges. Baking can also remove contaminants and moisture from the panel surface, reducing the generation of static electricity.

2.Charge Neutralization: During the baking process, electrostatic elimination devices such as static eliminators and air ionizers are typically used. These devices release a large number of positive and negative ions, which neutralize the static charges on the LCD panel, thereby reducing the accumulation of static electricity. Charge neutralization is a crucial step in the baking process for eliminating static electricity, effectively eliminating the static charges on the panel and preventing ESD damage to the display.

Ⅲ.Applications of Baking to Eliminate Static Electricity

Baking technology for static electricity elimination is widely used in the production and usage of LCD panels.

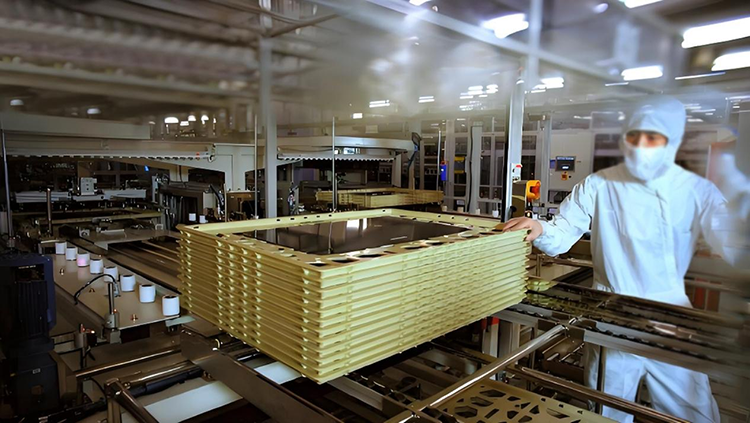

1.Production Stage: During the production of LCD panels, baking technology is extensively applied in processes such as panel lamination and curing. Baking ensures tight adhesion between the panel and the substrate while eliminating static electricity, improving product quality and stability.

2.Repair Stage: When an LCD panel malfunctions and requires repair, baking technology also plays a vital role. By eliminating static electricity from the panel through baking, it is possible to avoid component damage or display anomalies caused by static interference during the repair process.

3.Storage and Transportation: During storage and transportation of LCD panels, static electricity may be generated due to changes in environmental humidity and temperature, as well as friction and contact between panels. Baking the LCD panels to eliminate static electricity before storage and transportation ensures their safety and stability during prolonged storage and transit.

Ⅳ.I Implementation Steps and Precautions for Baking to Eliminate Static Electricity

In practical applications, baking to eliminate static electricity is typically achieved through the following steps:

1.Pretreatment: Before baking, the LCD panel undergoes pretreatment, including cleaning and drying. Cleaning removes contaminants and dust from the panel surface, while drying reduces the impact of moisture on static electricity.

2.Control of Baking Temperature and Time: Controlling the baking temperature and time is crucial for eliminating static electricity. Excessively high temperatures or prolonged baking times may damage the internal components of the LCD panel. Appropriate baking parameters should be set based on the specific type and specifications of the panel.

3.Baking Environment: The baking environment should be dry and dust-free to avoid contamination of the LCD panel by impurities. Additionally, the baking equipment should have good ventilation and heat dissipation capabilities to ensure smooth baking processes.

4.Post-treatment: After baking, the LCD panel undergoes post-treatment, including cooling and inspection. Cooling ensures that the panel does not experience additional stress or deformation due to temperature changes upon returning to room temperature. Inspection verifies the effectiveness of the baking process in eliminating static electricity and the display quality of the panel.

5.recautions: During the baking process to eliminate static electricity, the following precautions should be taken:

●Ensure the sealing performance and temperature control accuracy of the baking oven;
●Avoid using excessively intense heat sources or chemical solvents;
●Regularly maintain and service the baking equipment to ensure its normal operation;
●Strictly adhere to safety operating procedures to prevent accidents such as fires.

Baking is an effective method for eliminating static electricity and plays a crucial role in LCD panel manufacturing. Through the combined effects of thermal treatment and charge neutralization, baking can effectively eliminate static charges on LCD panels, preventing ESD damage to the display. Additionally, baking can remove contaminants and moisture from the panel surface, improving the display quality and reliability of the LCD panel. In the production process of LCD panels, baking to eliminate static electricity is an indispensable and essential process.
