The Role and Process of PCB and Chip Baking

In the semiconductor manufacturing industry, each process step directly impacts the final product's performance, reliability, and service life. As core components of semiconductor devices, the precision of manufacturing processes and the level of quality control for Printed Circuit Boards (PCBs) and chips are decisive factors for overall equipment performance and long-term operational stability. Among various processes, baking—a precise heat treatment—effectively removes moisture and volatile impurities, relieves internal stress, and enhances structural integrity. This significantly improves the electrical performance and reliability of PCBs and chips. The process not only prevents physicochemical issues like delamination and corrosion caused by residual moisture or contaminants but also ensures stable operation of semiconductor devices in complex and demanding environments.

 Ⅰ.Key Functions of PCB and Chip Baking

1. Moisture Removal: Both PCBs and chips can absorb ambient moisture during manufacturing. During subsequent high-temperature processes (e.g., soldering, curing), this moisture can expand, causing blistering, delamination, voids, or solder joint defects. Baking effectively removes moisture from within and on the surface of PCBs and chips, preventing such issues and significantly enhancing product reliability.

2. Enhanced Adhesion:In chip packaging, adhesives or silver paste are often used to bond the die to the substrate. Baking facilitates the curing of these materials, strengthening the bond between the chip and substrate. This is crucial for ensuring long-term stability, especially under thermal cycling, mechanical vibration, and other stresses.

3. Promotion of Material Reactions: Many electronic materials, such as epoxy and phenolic resins in molding compounds, require baking to complete curing or cross-linking reactions. This process stabilizes material properties, reduces delamination risk, and improves overall packaging quality. For PCBs, baking is also essential for curing solder masks, ensuring they effectively protect circuits during subsequent soldering.

4. Removal of Impurities and Gases: Residual impurities and trapped gases within PCB and chip materials can form bubbles under high temperatures, adversely affecting performance and reliability. Baking helps volatilize and expel these contaminants, minimizing bubble formation and ensuring encapsulation integrity.

5. Internal Stress Relief:Manufacturing steps like cutting and etching can induce internal stresses in PCBs and chips. These stresses may lead to cracking or warping during use. Baking helps relieve these stresses, improving dimensional stability and long-term reliability.

6. Improved Solderability:For PCBs, baking results in drier, cleaner surfaces, which promotes better solder flow and wetting during assembly. This enhances solder joint quality and reduces defects like voids and cold joints, which are critical for the electrical stability of the final product.

7. Increased Thermal Resistance: Baking stabilizes the material properties of PCBs and chips, enhancing their ability to withstand high operating temperatures. This is particularly important for applications like automotive electronics and industrial control systems, leading to extended product lifespan and reduced failure rates.

8. Oxidation Prevention: In oxidation-sensitive applications, baking can be performed in an inert atmosphere (e.g., nitrogen purging) to reduce oxygen levels inside the oven. This prevents oxidation of metal layers on and within PCBs and chips, maintaining good conductivity and reliability.

 Ⅱ.Baking Process Parameters

1. Temperature Control: Precise temperature control is critical. Standard PCB baking typically occurs at 85°C ±5°C, while moisture-sensitive devices (MSDs) often require 110°C ±5°C. Post-mold curing for chips may need temperatures around 200°C, depending on the materials used. Excessively high temperatures can damage materials, while insufficient temperatures compromise effectiveness.

2. Time Control: Baking duration varies. For PCBs, it can range from 8 to 16 hours based on manufacturing date and storage conditions. For MSDs, baking may last from 8 to 48 hours, depending on package thickness and sensitivity. Post-mold curing times are generally shorter but must be precisely defined. Over-baking can degrade materials, while under-baking may leave moisture or incomplete curing.

3. Ramp Rate: For MSDs, the heating ramp rate should be controlled, typically ≤1.5°C/min, to prevent rapid vaporization of internal moisture causing "popcorning" or internal damage. A gradual temperature increase allows moisture to diffuse out safely.

4. Inert Atmosphere (e.g., Nitrogen Purging): Using nitrogen or other inert gases during baking minimizes oxidation, which is crucial for high-temperature or prolonged baking processes. This is especially important for preserving the integrity of exposed metal surfaces.

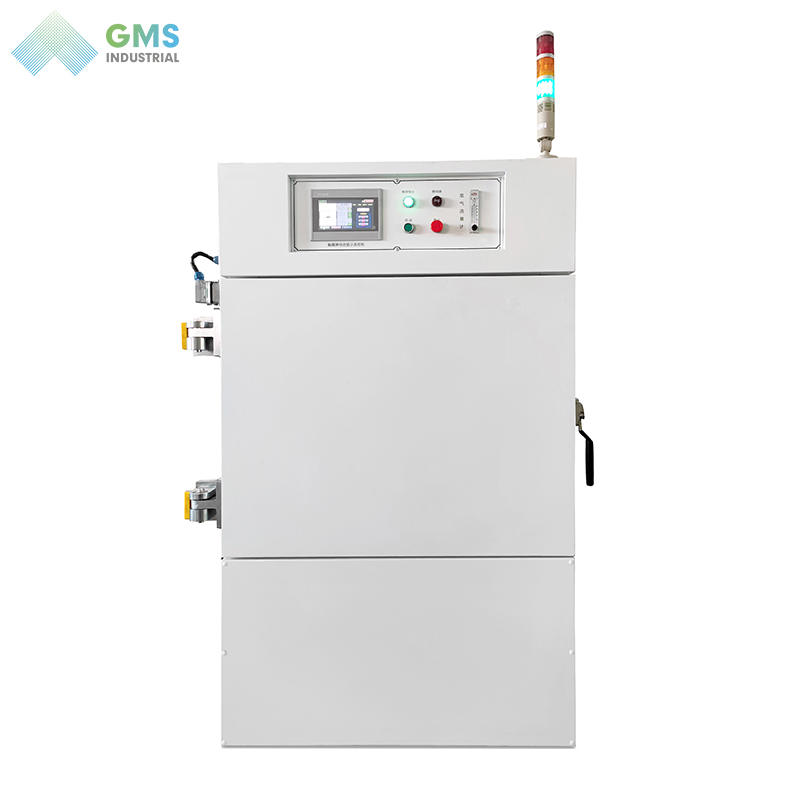

 Ⅲ.Types of Ovens Used for PCB and Chip Baking

1. High-Temperature Precision Ovens:These ovens offer a higher temperature range, typically 200°C to 300°C, and are suitable for processes requiring high-temperature curing or cross-linking, such as with polyimide adhesives or epoxy resins. They are essential in advanced packaging, aerospace, and other high-end manufacturing sectors.

2. Nitrogen Purged Ovens: These ovens introduce nitrogen to create a low-oxygen environment, effectively preventing oxidation during baking. They are ideal for high-temperature processes, prolonged baking, or applications involving oxidation-sensitive materials, widely used in semiconductors, electronics, and metal processing for oxidation-free drying, soldering, and annealing.

3. Vacuum ovens: Baking under vacuum lowers the boiling point of water, facilitating more efficient removal of moisture and volatile substances. This method is highly effective for moisture-sensitive high-reliability applications, such as in aerospace and automotive electronics. Vacuum ovens are also beneficial for removing organic contaminants during processes like drying, curing, and annealing.

4. Forced Air Convection Ovens: These ovens circulate hot air to ensure uniform temperature distribution, providing consistent baking results for batch processing. They are suitable for various processes including preheating, aging, baking, and thermal curing of PCBs and chips, offering high temperature control accuracy.

PCB and chip baking is a critical technology in electronics manufacturing. By removing moisture, enhancing adhesion, promoting material reactions, eliminating impurities, relieving stress, improving solderability, increasing thermal resistance, and preventing oxidation, baking significantly enhances the quality and reliability of PCBs and chips. This technology is extensively applied across industries such as consumer electronics, telecommunications, automotive electronics, industrial control, and aerospace, meeting the stringent performance and reliability demands of diverse applications.
