The Role of Baking Plastic Tape Packaged Components

Plastic tape packaging is a core material form in Surface Mount Technology (SMT) within the electronics manufacturing industry. Taping refers to the process of arranging surface-mount components—such as resistors, capacitors, and integrated circuit chips—into specific pitches, encapsulating them into cavities of a plastic carrier tape, covering them with a plastic cover tape, and winding them onto a standard-sized plastic reel. This packaging format not only facilitates high-speed picking and precise placement by automated pick-and-place machines but also provides excellent physical protection during transportation and storage. However, plastic tape materials and the encapsulated components are highly susceptible to moisture absorption in humid environments. When these moisture-laden components enter high-temperature processes like reflow soldering or wave soldering, internal moisture vaporizes and expands rapidly, potentially leading to package cracking, solder joint voids, electrical performance degradation, and other serious consequences. Therefore, standardized thermal baking of plastic tape packaged components prior to production has become an indispensable part of quality control systems in electronics manufacturing.

Ⅰ. Application Scope of Plastic Tape Packaged Components

The application of baking processes for plastic tape packaged components covers virtually all sectors of electronics manufacturing that utilize SMT.

1. Consumer Electronics:Motherboards in smartphones, tablets, and wearable devices integrate a massive number of miniaturized, high-density SMD components. These devices are extremely sensitive to moisture, and baking directly impacts the long-term reliability of the final products.
2. Automotive Electronics:With the proliferation of new energy vehicles and intelligent driving systems, components such as vehicle control units, sensor modules, and power devices have elevated requirements for solder quality and environmental tolerance. The baking process is now a fundamental step in ensuring the reliability of automotive-grade products.
3. Communication Equipment Manufacturing:High-frequency components and BGA-packaged chips used in 5G base stations, optical modules, and routers must undergo strict baking to prevent delamination and cracking during high-temperature reflow processes.
4. Other Fields:High-end manufacturing sectors such as industrial control, medical electronics, aerospace, and military equipment also incorporate component baking into their standard processes to ensure stable operation under harsh working conditions.

Ⅱ. Reasons for Baking Plastic Tape Packaged Components

The fundamental reason for baking plastic tape packaged components lies in the hazards posed by moisture to electronic components and their packaging materials.

Plastic packaging materials, particularly Epoxy Molding Compound (EMC) and substrate materials, are hygroscopic to a certain extent. In ambient environments, these materials slowly absorb water molecules from the air, which can permeate into the interior of the package. Once the moisture content reaches a critical level, subsequent reflow soldering raises temperatures rapidly to 220°C–260°C. Internal moisture vaporizes instantly, causing the volume to expand approximately 1600 times. This drastic pressure change leads to multiple destructive consequences:

1. "Popcorn" Phenomenon:When internal vapor pressure exceeds the structural limits, the package casing cracks, often accompanied by a popping sound similar to popcorn bursting, rendering the component completely useless.
2. Delamination and Peeling:Vapor pressure can cause separation between the chip and the substrate or between different material layers, destroying internal connections. Even if the appearance seems intact, significant reliability risks are embedded.
3. Degraded Solder Joint Quality:Moisture released from inside the component can interfere with wetting during soldering, leading to issues like cold solder joints, excessive voids, and insufficient strength, thereby reducing long-term reliability.
4. Electrical Performance Deterioration:The presence of water molecules can alter the dielectric properties of packaging materials, causing increased leakage current or decreased insulation resistance in high-temperature, high-humidity environments.

Therefore, thermal baking is not merely an auxiliary step; it is a necessary prerequisite to ensure the structural integrity and electrical stability of components during subsequent high-temperature processes.

Ⅲ. Functions of Baking Plastic Tape Packaged Components

The core function of baking is to effectively remove moisture adsorbed within the components and packaging materials through controlled thermal treatment, creating safe conditions for subsequent high-temperature soldering.

1. Deep Dehumidification:By continuously heating at a set temperature, moisture absorbed within the packaging material is gradually driven out, reducing internal humidity to a safe level and fundamentally eliminating the risk of "popcorning" in later stages.
2. Stress Relief:Residual mechanical stresses exist within components due to differences in thermal expansion coefficients of materials used during manufacturing. Appropriate baking temperatures help alleviate these residual stresses, reducing the risk of cracking or delamination caused by stress concentration during subsequent thermal cycling.
3. Performance Stabilization:Baking allows certain additives and curing agents within the packaging material to stabilize further, improving the thermal and chemical stability of the material, thereby enhancing the component's reliability in later processes and usage environments.
4. Process Compatibility Assurance:Properly baked components have more stable surface states, allowing for better wetting and bonding with solder paste or solder during the welding process, resulting in high-quality solder joints and improved first-pass yield.
5. Extended Floor Life:Baked components, when resealed or stored in controlled humidity environments, allow for the re-calculation of exposure time (Floor Life), providing greater flexibility for production scheduling.

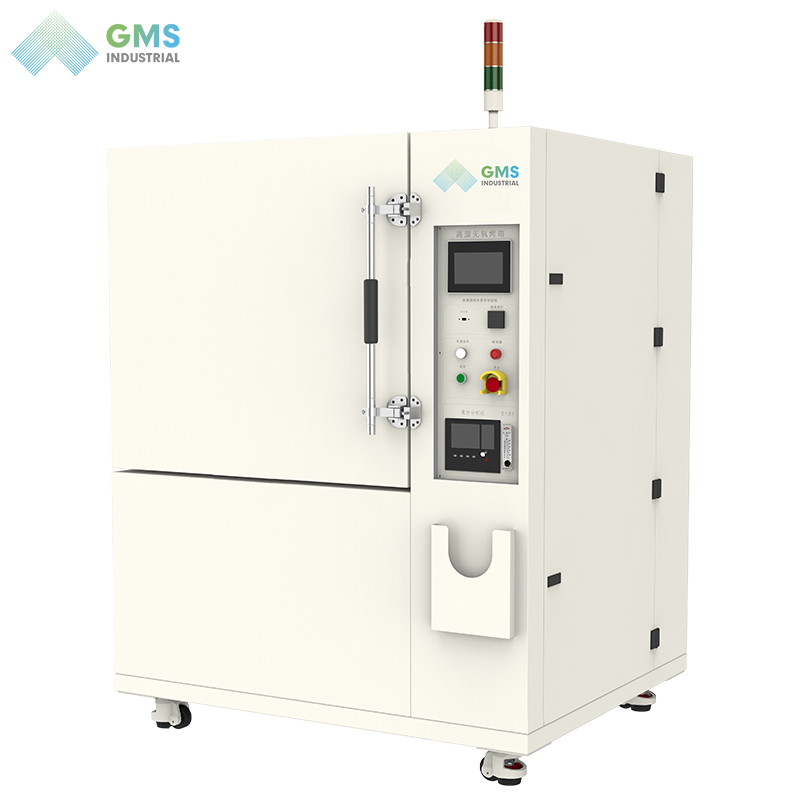

Ⅳ. Types of Ovens Suitable for Plastic Tape Packaged Components

In actual production, common oven types used for baking plastic tape packaged components include the following:

1. Forced Air Convection Ovens:These ovens use built-in fans to force air circulation, ensuring temperature uniformity (typically controlled within ±2°C). They are suitable for baking precision components requiring high temperature uniformity and offer large capacity for batch processing. When selecting, attention should be paid to airflow design to avoid direct hot air impact that could deform the tape.
2. Nitrogen Ovens:These ovens are filled with high-purity nitrogen during the baking process to create an inert atmosphere, effectively preventing oxidation of component leads and pads at high temperatures. The low-humidity nature of nitrogen also aids in accelerating moisture evaporation. For components with precious metal plating or high-reliability products, nitrogen ovens significantly improve post-bake solder quality. The nitrogen environment also enhances heat transfer efficiency, potentially shortening baking time. Additionally, nitrogen helps reduce the aging rate of plastic tapes at high temperatures.
3. Vacuum ovens:By evacuating the chamber to create a negative pressure environment, the boiling point of water is lowered, allowing moisture to vaporize at lower temperatures. This drastically shortens baking time or reduces the required temperature. This feature is particularly important for plastic tape packaged components, as vacuum conditions enable efficient dehydration at 90°C or even lower, completely avoiding the risk of thermal deformation of the plastic carrier tape and reel. Vacuum ovens are especially suitable for components with high MSL levels, thick packages, or applications where tape integrity is critical.
4. Clean ovens:Equipped with HEPA filtration systems, these ovens maintain Class 100 or Class 1000 cleanliness levels to prevent micro-dust particles from adhering to component surfaces during baking. They are suitable for high-reliability products in medical electronics, aerospace, and similar fields.

When selecting an oven, factors such as the component's Moisture Sensitivity Level (MSL), package size and thickness, the temperature resistance of the tape material, production volume, and quality requirements must be considered comprehensively. Regardless of the oven type chosen, calibrated temperature sensors and humidity monitoring devices must be equipped to ensure process traceability and consistency. Ovens should undergo regular temperature uniformity validation to prevent under-baking or component damage caused by hot or cold spots.

The baking of plastic tape packaged components is a critical process step in electronics manufacturing. In terms of application scope, whether for new material introduction, inventory activation, or rework, any component at risk of moisture exposure must strictly adhere to baking standards. The fundamental purpose of baking is to thoroughly remove accumulated internal moisture through scientific temperature and time control, eliminate fatal defects like "popcorning" and delamination during reflow soldering, relieve internal stress, stabilize material properties, and provide quality assurance for subsequent soldering processes.
