The Role of Baking Semiconductor Wafers

In semiconductor manufacturing processes, the wafer serves as the substrate material for integrated circuits, acting as the physical foundation for entire chip fabrication. Its surface condition is critical for the precision and final performance of subsequent steps such as photolithography, etching, doping, and thin film deposition, which can number in the hundreds. Wafer baking is a fundamental thermal process that involves heating the wafer under specific temperature and environmental conditions. The goal is to remove certain substances, alter material properties, or create optimal conditions for subsequent steps by applying heat. This process is directly related to the performance, yield, and reliability of the integrated circuits. In semiconductor manufacturing, wafer baking is primarily used to remove moisture and organic contaminants from the wafer surface or to adjust the properties of thin-film materials like photoresist.

I.Under What Applications is Wafer Baking Necessary?

Wafer baking is not performed after every process step but is required for specific process needs or issues. It is typically conducted in the following scenarios:

1. Removal of Adsorbed Moisture and Volatiles:When wafers are stored in air, undergo wet cleaning, or receive chemical treatment, water molecules or residual organic solvents from the environment can physically adsorb onto the surface. These contaminants can affect film adhesion, photoresist pattern quality, and interfacial electrical properties.
2. Pre-heating and Dehydration Before Processes: Prior to certain high-temperature processes extremely sensitive to moisture (e.g., high-temperature oxidation, chemical vapor deposition), wafers often undergo pre-baking to completely remove any potential water vapor, thereby preventing defect formation during the process.
3. Curing and Stabilizing Thin Films: After spin-coating photoresist, applying certain organic films (e.g., polyimide), or performing low-temperature deposition, baking is required to evaporate solvents, cure the film, and enhance its mechanical and chemical stability.
4. Promoting Chemical Reactions: In certain heat treatment processes, the thermal energy provided by baking is a necessary condition for driving specific chemical reactions (e.g., reflow baking, alloying).
5. Eliminating Surface Charge: In some cases, baking can help dissipate static charges accumulated on the wafer surface due to prior processes.

II.Main Functions of Wafer Baking

The specific functions of wafer baking can be summarized as follows:

1. Dehydration and Drying: This is the most basic and common function. Heating causes the desorption of water molecules adsorbed on and near the wafer surface, ensuring the wafer is in a dry, clean state before entering critical process steps.
2. Improving Film Adhesion: Removing interfacial moisture and contaminants enhances the adhesion between subsequently deposited films (e.g., metal, dielectric layers) or coated photoresist and the wafer substrate, preventing film delamination.
3. Stabilizing Photoresist Patterns: In photolithography, the "post-exposure bake" (PEB) is a key step. It drives the chemical reaction in the exposed areas of the photoresist, "fixing" the pattern and improving its stability and precision during development and subsequent etching.
4. Volatilizing Residual Solvents: For spin-coating processes, baking effectively removes remaining solvents from the film, causing it to solidify and achieve the desired physical thickness and properties.
5. Improving Interfacial Characteristics:Reducing impurities and defects at interfaces helps form more ideal semiconductor-dielectric or metal-semiconductor contacts, enhancing device electrical performance and reliability.
6. Process Activation:In some doping or alloying processes, the thermal energy provided by baking is necessary to activate dopant atoms or form good ohmic contacts.

III.Process Areas Involving Wafer Baking

The wafer baking process is integral to multiple key areas in semiconductor manufacturing and front-end processes:

1. Integrated Circuit (IC) Manufacturing:This is the primary and most extensive application area. Baking steps are ubiquitous, from dehydration bake after wafer cleaning, to pre-bake and post-exposure bake in photolithography, to dehydration bake before metallization.
2. Micro-Electro-Mechanical Systems (MEMS) Fabrication:In creating MEMS structures, baking is used to cure sacrificial layer materials, stabilize structural layers, or remove moisture before structure release.
3. Advanced Packaging:In advanced processes like wafer-level packaging (WLP) and fan-out wafer-level packaging (FOWLP), baking is used to cure molding compounds or temporary bonding adhesives, or to treat wafer surfaces before bump formation or redistribution layer (RDL) fabrication.
4. Compound Semiconductor Processing: In the manufacturing of compound semiconductor devices (e.g., GaAs, GaN), baking is similarly used for substrate treatment, photoresist processes, and stabilization of dielectric films.
5. Photovoltaic Cell Manufacturing:In solar cell fabrication, baking can be used to dry silicon wafers and cure electrode pastes.

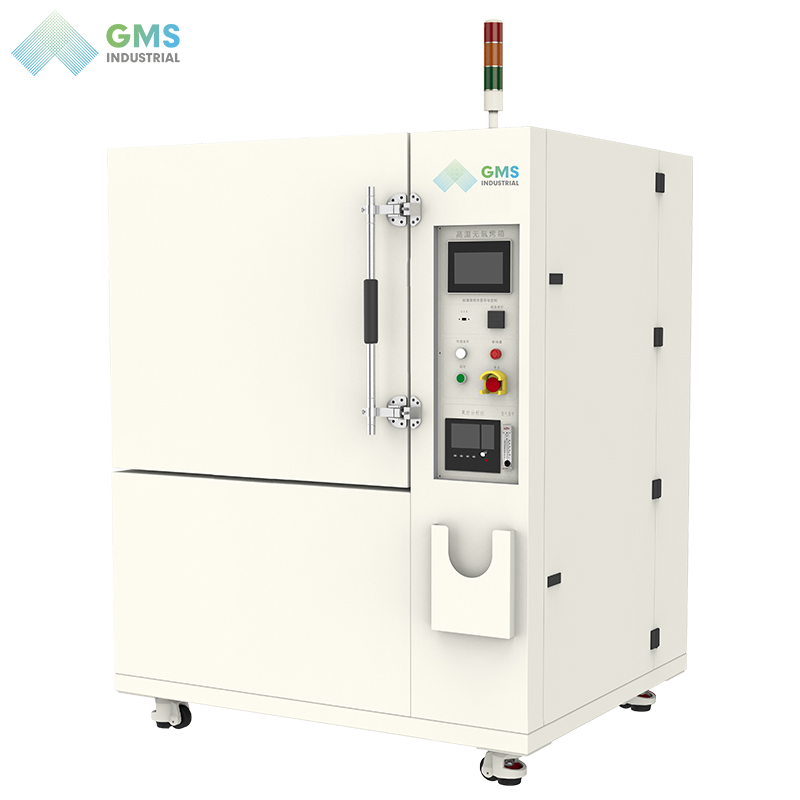

IV.Oven equipment for Baking Wafers

To meet different process requirements, various specialized baking systems have been developed, with the core capability of providing a clean, controllable thermal environment.

1. Vacuum ovens:These ovens heat while evacuating the chamber. Significantly lowering the ambient pressure allows moisture and volatiles to evaporate/desorb more rapidly at lower temperatures and prevents oxidation.

• Typical Uses:Processing materials extremely sensitive to oxygen/moisture; high-end wafers or materials requiring deep drying; removal of volatile organic compounds.

2. High-Temperature Clean ovens:These provide a highly clean heating environment (typically Class 100 or higher) with a wide heating range (often up to 300°C or more). Internal airflow is HEPA-filtered, and the thermal field is uniform.

• Typical Uses:Dehydration, curing, and alloying in standard semiconductor processes; processes requiring high temperature but not special atmosphere protection. This is the most widely used type.

3. Oxygen-Free Ovens:During baking, these ovens continuously introduce high-purity inert gas (e.g., nitrogen, argon) and maintain a positive chamber pressure to completely exclude oxygen from the heating zone.

• Typical Uses: Preventing oxidation of easily oxidized metals (e.g., copper, titanium) during heating; oxygen-sensitive steps in compound semiconductor processing.

Wafer baking is a fundamental thermal process in semiconductor manufacturing. Its function is to actively manage the wafer's surface state and film properties through controlled thermal energy. It effectively removes moisture and contaminants that threaten process stability and device performance, enhances interfacial bonding between materials, stabilizes patterned structures, and prepares the wafer for subsequent high-temperature processes. From standard silicon-based ICs to advanced compound semiconductors and MEMS devices, baking processes have broad coverage.
