The role of integrated circuit substrate curing

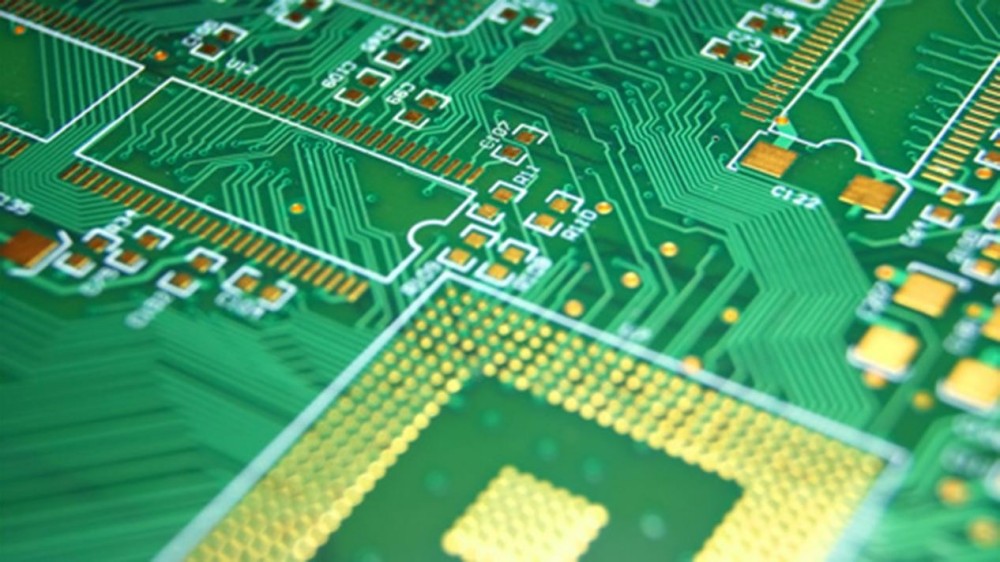

An integrated circuit substrate (IC substrate) is a type of packaging substrate and a branch of PCBs. Evolving from HDI boards, it features high density, precision, performance, miniaturization, and lightweight thinness. In IC packaging, the substrate protects, fixes, and supports chips, enabling electrical and physical connections, power and signal distribution, and communication between internal and external chip circuits. Curing is a key step in substrate manufacturing, involving heating or other methods to trigger chemical reactions in materials like resins and curing agents for hardening and shaping. It significantly impacts the substrate's performance and quality.

I. Key roles of integrated circuit substrate curing:

1.Enhancing connection reliability: Curing ensures strong bonds between materials (e.g., conductive adhesives, molding compounds) on the packaging substrate and chips. This guarantees chip stability during packaging and prevents detachment or breakage in subsequent use, improving overall IC reliability.

2.Increasing mechanical strength: The cured packaging substrate has higher mechanical strength, better withstanding external forces and pressures. This protects chips from physical damage and extends IC service life.

3.Optimizing electrical performance: Curing improves circuit layout and connections on the packaging substrate, reducing resistance and capacitance, and enhancing signal transmission speed and stability. This is crucial for elevating overall IC performance and stability.

4.Boosting thermal stability: The cured packaging substrate has better thermal conductivity, effectively dissipating heat generated by chips. This ensures chips operate within normal temperature ranges, preventing performance degradation or failure due to overheating.

II. Integrated circuit substrate curing process:

1.Pre-treatment: Before curing, the packaging substrate must be thoroughly cleaned and dried to ensure a clean and smooth surface. This removes impurities and oxides, providing a solid foundation for subsequent processes.

2.Material coating: Apply curing materials (e.g., conductive adhesives, molding compounds) to the packaging substrate. Precisely control the amount and uniformity of materials during coating to ensure post-curing quality.

3.Curing treatment: Transfer the coated packaging substrate to an oven for heating and insulation. Precisely control curing temperature and time based on material type and characteristics to ensure complete and high-quality curing. This often involves heating, pressurizing, or chemical reactions to enhance packaging material performance and better protect chips.

4.Post-treatment: After curing, conduct necessary processes like de-gelling and electroplating to form a complete packaging structure.

III. Oven selection for integrated circuit substrates:
Oven selection for substrate curing should consider factors like temperature control accuracy, atmosphere control ability, uniformity, and automation.

1.Temperature control: The oven should have a precise temperature control system to regulate and maintain specific curing temperatures, ensuring curing stability and consistency.

2.Atmosphere control: For certain curing processes (e.g., silver paste curing), the oven should control the internal atmosphere (e.g., nitrogen protection) to prevent material oxidation. It should enable precise nitrogen control and regulation.

3.Uniformity: The oven should have a uniform temperature distribution to ensure consistency and quality during curing, avoiding uneven curing caused by temperature gradients.

4.Oven types:
● Clean ovens:With high cleanliness and temperature uniformity, they suit IC manufacturing with high cleanliness requirements. They prevent impurity and contamination during curing, ensuring quality.
● Vacuum ovens:Conduct curing in a vacuum to prevent material oxidation or chemical influences during curing, suitable for applications with high material performance requirements.
● Oxygen-free ovens:By filling with inert gases (e.g., nitrogen), they prevent material oxidation during curing, ensuring material stability and quality in oxidation-sensitive cases.

5.Automation: To boost efficiency and reduce human intervention, ovens can have automated control and monitoring systems. These systems can monitor parameters like temperature and humidity in real-time and automatically adjust process parameters as needed to ensure curing quality and stability.

Integrated circuit substrate curing plays a vital role in semiconductor manufacturing. Selecting appropriate ovens and strictly controlling curing process parameters are essential for ensuring curing quality and efficiency. By optimizing the curing process and choosing suitable ovens, the mechanical strength, electrical performance, and thermal stability of integrated circuits can be significantly improved, strongly supporting the development of the semiconductor manufacturing industry.
