The Role of Nitrogen Baking for PCBs

In the electronics manufacturing industry, printed circuit boards (PCBs), as the core carriers of electronic products, directly determine the reliability and service life of electronic products. During the manufacturing, transportation, and storage processes, PCBs inevitably absorb moisture from the environment. The accumulated internal moisture can rapidly vaporize and expand during subsequent SMT reflow soldering or wave soldering processes, leading to severe defects such as board explosion, delamination, and copper foil blistering. While traditional baking can remove some moisture, in high-temperature environments, reactions between oxygen and metal surfaces accelerate, resulting in solder pad oxidation, decreased solderability, and even excessive growth of intermetallic compounds (IMCs), severely affecting subsequent SMT mounting quality and soldering reliability. Therefore, the application of nitrogen baking technology, which involves heat-treating PCBs in an inert atmosphere, achieves the dual goals of dehumidification and oxidation prevention, making it an indispensable critical process in high-end PCB manufacturing.

Core Functions of Nitrogen Baking for PCBs

1. Preventing Oxidation and Protecting Metal Coating Integrity: Nitrogen, as an inert gas, effectively displaces oxygen inside the baking oven during the baking process, maintaining the oxygen content at a suitable low level or lower, thereby blocking the oxidation reaction chain on metal surfaces. For PCBs with surfaces treated with OSP (Organic Solderability Preservative), immersion gold, immersion silver, and other precision finishes, nitrogen protection ensures that the solder pad coatings maintain excellent soldering activity after high-temperature baking, preventing solderability degradation due to oxidation. Particularly for high-end substrates such as High-Density Interconnect (HDI) boards and Flexible Printed Circuits (FPCs), the nitrogen atmosphere prevents oxidation of microvia copper layers, ensuring electrical connection reliability in subsequent assembly.
2. Deep Dehumidification to Eliminate Board Explosion Risks: Nitrogen baking utilizes dry nitrogen continuously introduced within a suitable temperature-controlled range, leveraging the flow of nitrogen to carry away deeply adsorbed moisture inside the PCBs. Compared to air baking, nitrogen not only acts as a protective medium but also accelerates moisture evaporation due to its drying characteristics, reducing the PCB moisture content below safe levels.
3. Eliminating Internal Stress and Stabilizing Substrate Dimensions: PCBs develop internal residual stress during processes such as lamination and drilling, leading to warpage and deformation. Nitrogen baking, while uniformly heating, precisely controls the temperature to allow PCBs to release internal stress under constant temperature, stabilizing dimensional accuracy and reducing warpage. For ultra-thin or large-area boards requiring high flatness, the nitrogen environment ensures even heat distribution, preventing secondary deformation caused by localized overheating, and provides an ideal flatness foundation for subsequent SMT placement.
4. Improving Solder Quality and Long-Term Reliability: PCBs subjected to nitrogen baking have clean, oxidation-free solder pad surfaces, exhibiting better wetting performance during subsequent soldering processes. This allows solder to fully spread and form robust solder joints, significantly reducing defects such as cold soldering and insufficient solder. By removing residual moisture and volatile organic compounds (VOCs) from the substrate, nitrogen baking also prevents issues such as decreased insulation resistance and electrochemical migration (ECM) during long-term use due to internal moisture migration. This extends the service life of electronic products and enhances their long-term reliability in harsh environments.
5. Purifying the Environment and Removing Impurity Contamination: The continuous flow of high-purity nitrogen carries away moisture, dust, and other volatile impurities inside the baking oven. Combined with high-efficiency filters (capable of achieving Class 100 or Class 1000 cleanliness), it provides a clean baking environment for PCBs. This is particularly important for environmentally sensitive products such as high-precision circuit boards and semiconductor packaging substrates, effectively preventing line short circuits or signal integrity issues caused by particulate contamination.

Suitable Nitrogen Baking Equipment for PCBs

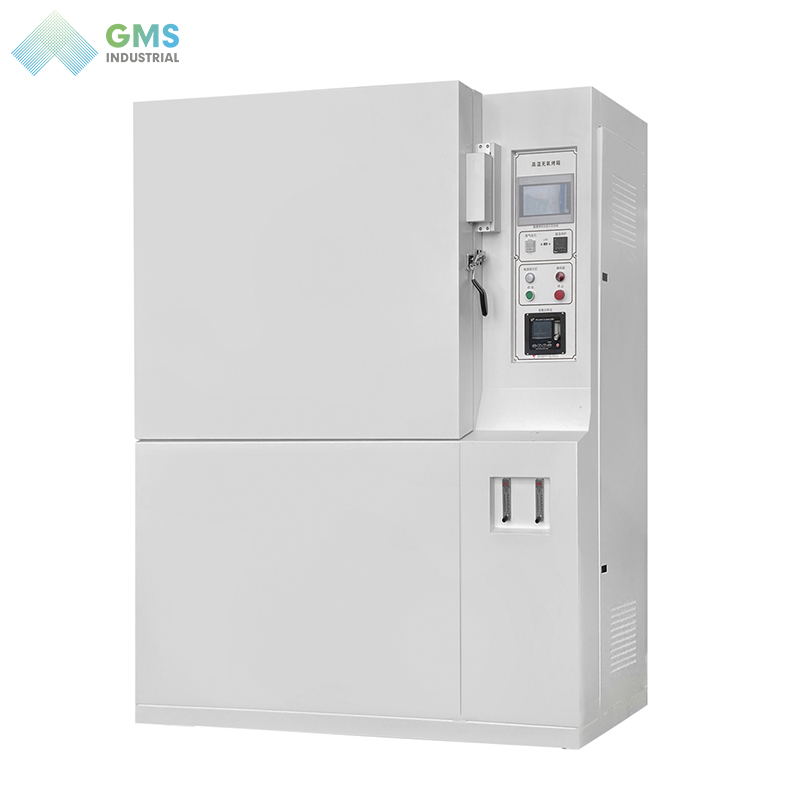

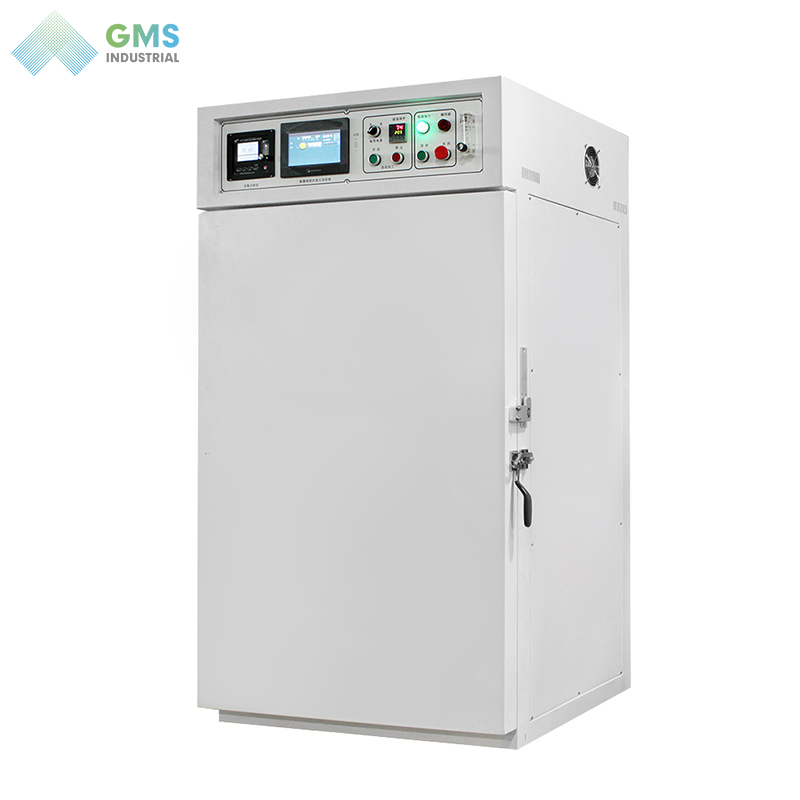

1. Nitrogen Baking Oven: This is the most commonly used nitrogen baking equipment, featuring a chamber structure and excellent sealing. The equipment is equipped with a nitrogen intake system, exhaust valves, and flow meters to precisely control the nitrogen atmosphere inside the chamber. The heating system uses high-performance heating elements and circulating fans to ensure temperature uniformity. The temperature control system supports multi-stage program settings, meeting the baking requirements of different substrates. It is suitable for small to medium batches and diverse types of PCB baking.
2. Vacuum Nitrogen Baking Oven:Based on the nitrogen baking oven, a vacuum system is added to first remove most of the air and moisture through vacuum extraction, followed by nitrogen filling for baking. This combination process more thoroughly removes deeply embedded moisture inside PCBs, making it particularly suitable for highly moisture-absorbent Flexible Printed Circuits (FPCs), rigid-flex boards, and High-Density Interconnect (HDI) boards.
3. Clean Nitrogen Baking Oven: A precision device designed for semiconductor-grade applications, combining vacuum nitrogen filling functions with Class 100 or Class 1000 clean environment control. High-efficiency filters purify circulating gases for 0.3μm particles with a filtration efficiency of up to 99.97%. It is mainly used for processes highly sensitive to particles and oxidation, such as HDI board via filling, BGA/CSP packaging substrate curing, and BCB/PI adhesive curing, ensuring solder pad surfaces remain free of oxidation discoloration and particulate contamination.

Nitrogen baking technology addresses two major industry challenges—moisture adsorption and metal oxidation—by heat-treating PCBs in a controlled inert atmosphere. It not only thoroughly removes internal moisture from PCBs, preventing board explosion and delamination defects, but also protects precision metal coatings from oxidation, significantly improving solder quality and product reliability. Nitrogen baking is widely applied in high-end manufacturing fields such as automotive electronics, medical devices, aerospace, and semiconductor packaging.
