The Role of Ovens in Chip Packaging

In semiconductor manufacturing, chip packaging is crucial as it determines how a chip connects to external pins and performs in diverse environments, directly impacting the product's performance, quality, and reliability. Ovens play a vital role in this process, significantly affecting product quality and performance.

I.Key Roles of Ovens in Chip Packaging

The primary role of ovens in chip packaging is to use high temperatures to ensure the integrity, stability, and reliability of chips. Specifically, ovens play the following key roles:

1. Moisture Removal: Electronic components can be affected by humidity during production, storage, and transportation. Moisture can cause oxidation inside components and create bubbles during subsequent high-temperature operations, affecting welding quality and chip performance. Oven treatment can effectively remove moisture from chip surfaces and other components, ensuring their stability and reliability.

2. Stress Elimination: Temperature changes during chip packaging can cause material expansion and contraction, leading to internal stress that can impact chip performance. Ovens can help eliminate this stress by controlling temperature changes, enhancing chip stability.

3. Adhesive Curing: In chip packaging, adhesives are used to fix chips onto substrates. Oven heating can accelerate the curing process of adhesives, ensuring a strong bond between the chip and substrate and improving product reliability.

4. Welding Quality Improvement: Welding is a critical part of chip packaging. Oven treatment can enhance welding quality by allowing solder to melt fully and form good joints, ensuring a reliable bond.

5. Moisture and Bubble Removal: Chips may absorb moisture from the air during manufacturing, storage, and transportation. This moisture can expand rapidly under high temperatures, creating bubbles that increase internal stress and even cause "popcorn" effects, damaging the chip. Oven treatment can effectively remove surface moisture and internal bubbles from chips, reducing the risk of moisture and bubble-related failures and improving welding reliability.

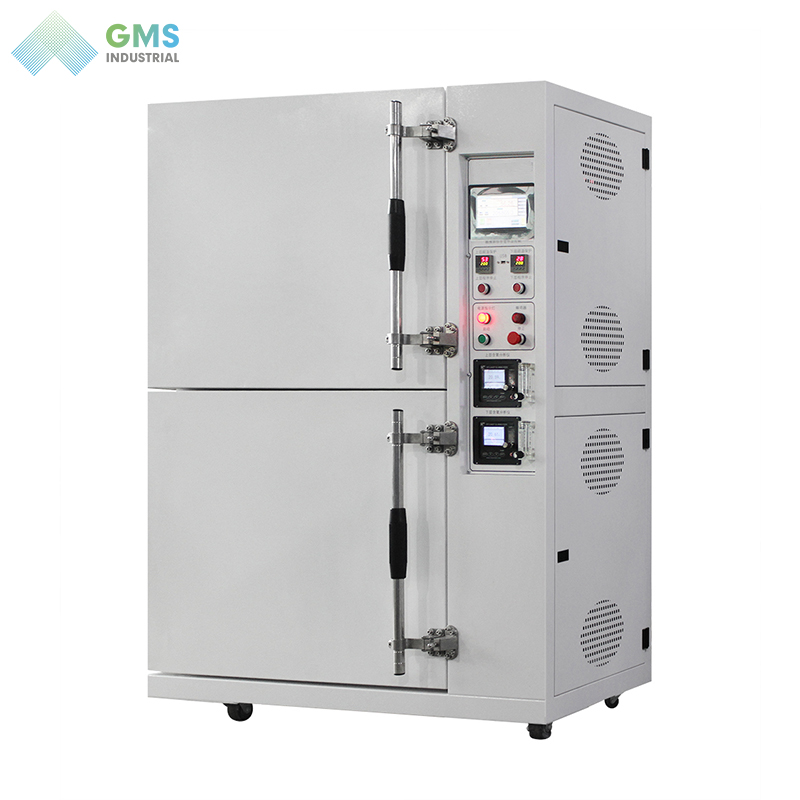

II.Selecting Chip Packaging Ovens

When selecting a chip packaging oven, the following key factors should be considered:

1. Temperature Control Accuracy: The temperature control accuracy of the oven directly affects the baking results. High-precision temperature control ensures uniform heating of chips during baking, preventing performance issues caused by local overheating or underheating. When selecting an oven, priority should be given to equipment with high-precision temperature control.

2. Heating Method and Efficiency: Different heating methods and efficiencies can impact the baking results and energy consumption of the oven. For example, hot air circulation heating ensures uniform temperature distribution and improves baking efficiency, while nitrogen-protected heating prevents oxidation reactions and enhances product reliability. The heating method and efficiency should be chosen based on specific process requirements.

3. Material and Sealing: The material and sealing of the oven are important for baking results. High-quality materials can withstand high temperatures and corrosion, ensuring long-term stable operation, while good sealing prevents external gases and impurities from entering the oven and affecting baking results. Attention should be paid to the material and sealing performance when selecting an oven.

4. Automation and Intelligence: With technological advancements, the automation and intelligence levels of ovens are continuously improving. Highly automated ovens reduce manual operations and improve production efficiency, while intelligent ovens can automatically monitor and adjust parameters such as temperature and humidity, enhancing baking results and product quality. The automation and intelligence level should be chosen based on production needs.

5. Applicability and Compatibility: Different chip packaging processes have different requirements for ovens. When selecting an oven, its applicability and compatibility should be fully considered. For example, for chip packaging processes requiring oxygen-free baking, an oven with nitrogen protection should be chosen, and for high-temperature baking processes, an oven capable of withstanding high temperatures should be selected.

In summary, chip packaging ovens play a crucial role in semiconductor manufacturing, directly impacting chip stability and reliability. When selecting an oven, factors such as temperature control accuracy, heating uniformity, atmosphere control, capacity, dimensions, energy consumption, environmental impact, and maintenance should be comprehensively considered to ensure it meets production requirements.
