The Role of Post-Mold Cure in Chip Encapsulation

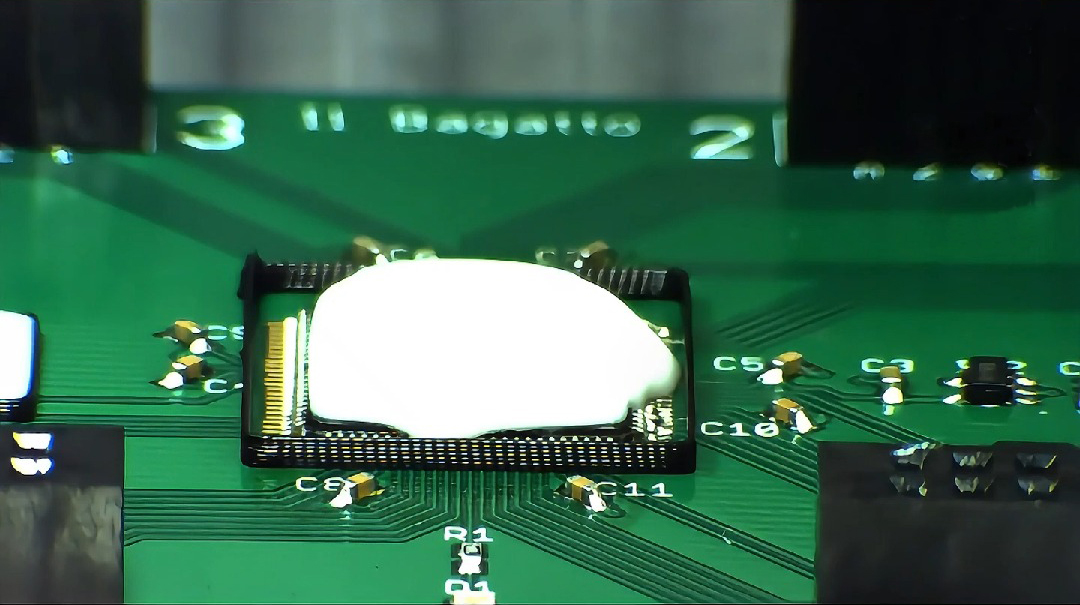

In the semiconductor manufacturing process, chip packaging involves mounting the bare semiconductor chip into a package to protect it from the external environment and provide connection to external circuits. The post-mold cure step in chip encapsulation is crucial, as it not only enhances the chip's heat resistance, mechanical strength, and electrical performance but also improves the product's stability and reliability.

Ⅰ.The Role of Post-Mold Cure in Chip Encapsulation

1. Enhanced Heat Resistance: The cross-linked structure present in the cured epoxy molding compound improves its thermal stability and mechanical strength. This not only boosts the heat resistance of semiconductor components but also reduces the coefficient of thermal expansion among chips, minimizing the impact of temperature changes on the entire device.
2. Increased Mechanical Strength:Semiconductor components must withstand not only temperature variations but also mechanical stresses such as vibration and impact during use. Post-mold cure of the epoxy encapsulation enhances the mechanical strength of semiconductor components, thereby reducing failure and malfunction rates due to mechanical stress. The cured epoxy molding compound possesses higher hardness and toughness, protecting the internal semiconductor chip from mechanical stress damage.
3. Improved Electrical Performance: The cured epoxy molding compound exhibits better insulation properties and electrochemical stability. Under external electric fields, it maintains its shape and performance, effectively safeguarding the stability and reliability of the internal semiconductor chip.

Ⅱ.Baking Process After Chip Encapsulation

The primary purpose of baking is to ensure complete curing of the molding compound, thereby enhancing product quality and stability. The specific steps and parameters of the baking process are as follows:

1. Mold Forming: Place the leadframe with completed wire bonding into the mold and encapsulate the chip, metal leads, and leadframe with molding compound, achieving the desired external shape. In the mold, 80% of the molding compound's conversion and curing should be completed.
2. Post-Mold Baking: Place the molded products into an oven for baking to complete the remaining 20% of the curing process. The baking temperature is 175°C, with a duration of 2-8 hours. During baking, a metal weight is placed on top of the encapsulated chip products to eliminate warping, which should be controlled within 50 micrometers.
3. Plating and Post-Bake:After encapsulation, plate a layer of tin onto the leadframe for future surface mount technology in circuit system fabrication. Following plating, a post-bake is required to reduce and delay the formation of whiskers, as whiskers can cause short circuits among the pins of the encapsulated chip products, rendering the circuit system inoperable. The post-bake temperature is 150°C, with a duration of 1 hour.

Ⅲ.Suitable Ovens for Use

In the baking process for post-mold cure of chips, the following are the requirements for suitable ovens:

1. High-temperature oven:High-temperature ovens are commonly used for baking encapsulated chips to remove bubbles and moisture from the molding material, enhancing chip reliability and stability. These ovens can heat the chips to a certain temperature (usually above 150°C) and maintain it for a period (ranging from a few hours to tens of hours), ensuring complete curing of the molding material.
2. Clean oven:Clean ovens are also essential equipment in integrated circuit manufacturing. They provide a suitable baking environment for chips while maintaining high cleanliness. Clean ovens are typically used in processes such as die attachment curing and mold curing, ensuring that chips remain uncontaminated during baking.
3. Oxidation-Free Oven: Oxidation-free ovens are primarily used for oxygen-free drying, curing, soldering, annealing, and other high-temperature treatments of materials such as semiconductors and optoelectronic components. They meet the oxygen-free baking requirements of the semiconductor packaging and testing industry, ensuring that chips do not undergo oxidation reactions during baking.

Ⅳ.Factors to Consider When Selecting an Oven

1. Temperature Control: The temperature control accuracy of the oven should meet the requirements for post-mold cure of chips. Generally, the curing temperature needs to be precisely controlled within a certain range to ensure complete curing of the molding material without damaging the chip.
2. Heating Uniformity: The heating elements and fan system inside the oven should be designed reasonably to ensure even heat distribution throughout the oven. This helps avoid poor chip curing issues due to uneven temperature distribution.
3. Sealability: The sealability of the oven is crucial for preventing external contaminants from entering the oven interior. Choosing an oven with good sealability ensures that chips remain uncontaminated during baking, thereby enhancing chip reliability and stability.

The post-mold cure step in chip encapsulation plays a vital role in the production process of semiconductor components. By selecting appropriate baking processes and ovens, it can be ensured that the molding compound cures completely, improving the semiconductor components' heat resistance, mechanical strength, and electrical performance, thereby extending their lifespan and enhancing their reliability.
