The role of Silver Paste Curing in Electronics Manufacturing

Silver paste, as a conductive material, is essential in electronics manufacturing. Its curing process transforms the paste from a liquid or paste state to a solid, forming stable conductive paths. Proper curing ensures excellent conductivity and mechanical stability. The curing technology is widely used in PCB manufacturing, electronic component connections, and conductive coatings.

I. Characteristics of Silver Paste Curing

1.Excellent Conductivity: Cured silver paste forms a stable conductive network. Conductivity depends on silver powder content, particle size distribution, and organic vehicle ratio. Higher silver powder content usually means better conductivity, but it may compromise other properties.
2.Good Adhesion: Cured silver paste adheres well to various substrates like ceramics, glass, metals, and flexible materials. This adhesion depends on the silver paste's chemical composition and the curing process.
3.Thermal and Mechanical Stability: Cured silver paste has high thermal and mechanical stability, maintaining performance within a certain temperature range, which is crucial for component reliability.
4.Low-Temperature Curing: Low-temperature curing silver paste is a research hotspot. It can cure at low temperatures, preventing substrate and component damage and expanding its application scope.

II. Functions of Silver Paste Curing

1.Electrical Connection: In PCBs, solar cells, and touchscreens, cured silver paste forms conductive paths for electrical connections between components.
2.Enhanced Component Reliability: Proper curing strengthens the bond between silver paste and substrates, improving mechanical strength and resistance to environmental factors, thereby enhancing component reliability.
3.Thermal Management Optimization: In high-power electronic devices, cured silver paste dissipates heat effectively, preventing overheating and extending component lifespan.

III. Applications of Silver Paste Curing in Different Fields

1.Electronic Component Manufacturing: In PCB manufacturing, silver paste curing creates conductive lines and pads. In MLCC production, low-temperature curing silver paste improves anti-flexure ability and thermal expansion coefficient matching.
2.Solar Cell Field: Heterojunction solar cells require curing below 200℃. Low-temperature silver paste meets this requirement while ensuring high conversion efficiency and stability.
3.Touchscreen and Display Technology: In touchscreen manufacturing, cured silver paste forms transparent conductive films for touch signal transmission, providing a sensitive touch experience.

IV. Baking Process of Silver Paste Curing

1.Baking Temperature: Different silver paste formulations and applications have varying temperature requirements. Low-temperature silver paste is typically baked between 110℃ and 250℃. For example, some low-temperature nano-silver pastes can sinter around 120℃, reducing substrate thermal damage.
2.Baking Time: Baking time affects the curing degree and performance. It generally ranges from 5 to 30 minutes. For instance, curing at 200℃ for 10 minutes can achieve a low resistivity silver paste.
3.Heating Rate and Insulation Time: A reasonable heating rate and proper insulation time ensure organic components in the silver paste fully volatilize and decompose, forming a dense cured layer. Slow heating is usually adopted to prevent bubble or crack formation.

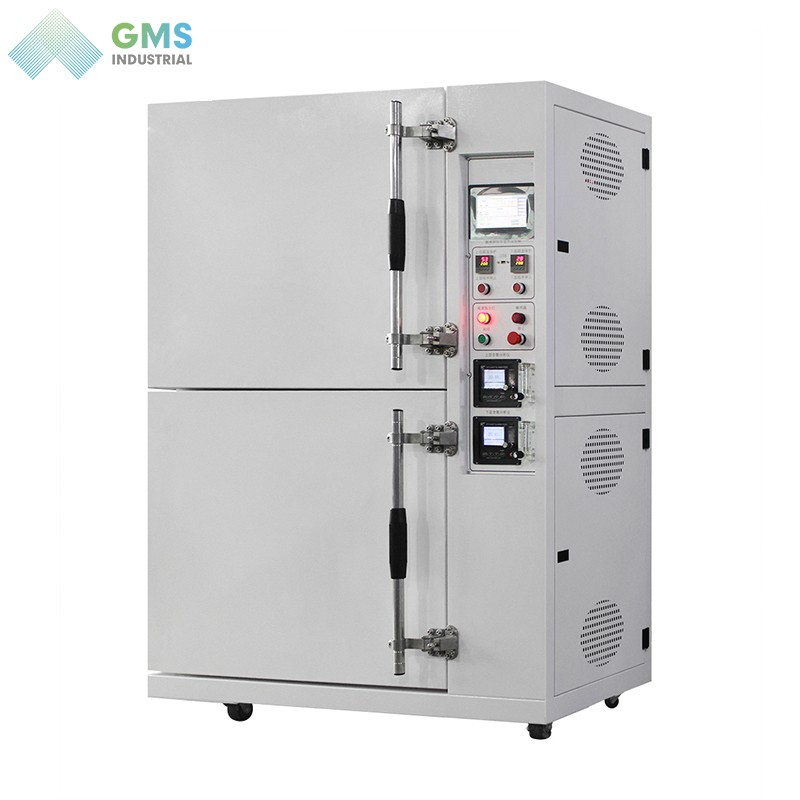

V. The Role of Oxygen-Free Ovens in Silver Paste Curing

1.Oxidation Prevention: Curing in an oxygen-free environment prevents silver powder oxidation, maintaining its high conductivity and thermal conductivity. Oxidation increases resistance and reduces conductivity.
2.Conductivity Improvement: Oxygen-free baking promotes good contact and connection between silver powder particles, enhancing the cured silver paste's conductivity by reducing surface impurities and oxides.
3.Mechanical Property Enhancement: In an oxygen-free environment, organic components decompose more fully, creating a denser cured layer with better mechanical properties like adhesion, flexibility, and durability.
4.Product Stability Assurance: Oxygen-free baking reduces oxidation by-products and gases, avoiding adverse effects on the cured silver paste's properties, ensuring product stability and consistency.

Silver paste curing technology is widely used in electronics, solar energy, touchscreens and other fields. It plays a crucial role in enhancing product performance and extending service life. By optimizing the baking process and using oxygen-free ovens, the silver paste curing process can be further improved to ensure product quality and reliability.
