Why Electronic Components Need Baking

In the electronics manufacturing industry, baking is a critical process ensuring the quality and reliability of electronic components and printed circuit boards (PCBs). Whether it is integrated circuits (ICs), BGA chips, or bare PCBs, moisture absorption from the air during storage and transportation is inevitable. If this moisture is not removed before processes like reflow soldering or wave soldering, the rapid vaporization and expansion of water under high temperatures can lead to severe defects such as package cracking, solder joint voids, PCB delamination, and even the "popcorn effect." As an indispensable step in the production, storage, and usage of electronic components, baking serves the vital function of removing moisture, restoring component performance, and guaranteeing soldering quality.

Ⅰ  Reasons for Baking Electronic Components

The necessity of baking stems from the damage moisture inflicts on components. Many electronic components utilize plastic or epoxy resin packaging; these materials are inherently hygroscopic. When exposed to humid environments, moisture permeates through micro-pores in the packaging into the internal cavities between the chip and the lead frame. During subsequent soldering processes (e.g., reflow or wave soldering), this accumulated moisture heats up rapidly, generating significant steam pressure. When this pressure exceeds the mechanical limits of the packaging material, it results in catastrophic failures such as delamination, the popcorn effect, bond wire breakage, or package cracks, ultimately leading to component failure or reduced product reliability.

Furthermore, moisture can cause oxidation and corrosion of component leads and pads, reducing wettability during soldering and leading to defects like cold solder joints or non-wetting. For moisture-sensitive components (e.g., BGAs, QFPs), exposure for even short periods can result in significant moisture absorption. Once removed from their moisture barrier bags, they must be soldered within a specified timeframe; otherwise, baking is required to restore them to a dry state.

Ⅱ   Functions of Baking Electronic Components

1.Removing Internal Moisture: This is the most direct and fundamental purpose. By placing components in a controlled high-temperature environment, adsorbed water within the packaging material evaporates and escapes, reducing the moisture content to a safe level. Different baking conditions correspond to different Moisture Sensitivity Levels (MSL) to ensure no damage occurs during subsequent high-temperature processes.

2.Restoring Floor Life: Electronic components have a "floor life" countdown once removed from their moisture barrier bags. If the exposure time exceeds the allowed floor life, baking must be performed to reset the safety window. After baking, components can be resealed, effectively resetting their floor life—a mechanism crucial for production scheduling and inventory management.

3.Preventing Soldering Defects: Unbaked, moisture-laden components can cause solder voids, bridging, solder ball splatter, and other defects during reflow. More severely, micro-cracks or delamination may occur. These latent defects may not be immediately detectable but can evolve into reliability failures during the product's operational life, severely impacting longevity.

4.Improving Solderability: Moderate baking can remove slight oxidation layers on leads and pads, improving solder paste wetting and enhancing joint quality. However, it is critical to strictly control temperature and duration, as over-baking can lead to severe oxidation, which is counterproductive.

5.Ensuring High-Reliability Applications: In fields with extreme reliability requirements—such as aerospace, automotive electronics, and medical devices—any potential moisture-related defect is unacceptable. As a preventive process, baking effectively reduces the early failure rate and ensures long-term stable operation in harsh environments.

Ⅲ  Application Scope of Component Baking

1.PCB Baking:Baking PCBs prior to SMT assembly is standard industry practice. It removes moisture to prevent bubbling and blistering during soldering, thereby improving quality and reliability. Parameters vary based on the board's production date and condition.

2.IC Component Baking: ICs require baking before SMT placement. For tray-packaged SOP, QFP, and PLCC devices, baking decisions are often based on the Humidity Indicator Card (HIC) inside the vacuum packaging. Tray BGAs, due to their high-density packaging and difficulty expelling moisture, typically require longer baking durations to prevent voids and cold joints.

3.Passive Component Baking: Resistors, capacitors, and inductors also absorb moisture during storage and transport. Appropriate baking parameters must be determined based on component type and storage environment to ensure reliability.

4.Semiconductor Device Baking: In semiconductor fabrication, baking is used for wafer pre-baking, annealing, and curing processes, as well as for drying electronic elements requiring clean processes and low oxidation.

5.Burn-in Baking: Electronic components typically undergo high-temperature burn-in testing prior to shipment to screen out early failures. Burn-in baking applies to resistors, capacitors, ICs, and other devices, accelerating the exposure of potential defects through prolonged operation in high-temperature environments.

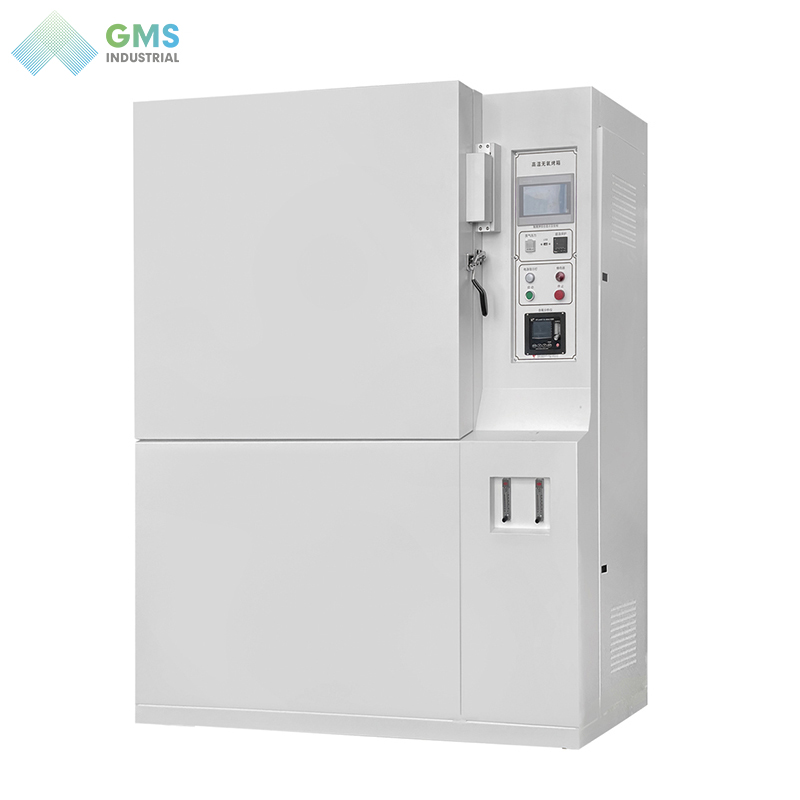

Ⅳ  Applicable Ovens for Electronic Component Baking

1.Hot Air Circulating Oven: Utilizes electric heating elements and a blower fan to circulate hot air, ensuring uniform temperature distribution. Suitable for conventional components like capacitors, resistors, and inductors. Features include simple structure, ease of operation, and cost-effectiveness.

2.Nitrogen Oven(Inert Gas Oven) : Performs drying in a nitrogen atmosphere. By displacing air with high-purity nitrogen, it creates an oxygen-free or low-oxygen environment to effectively prevent oxidation. Ideal for oxidation-sensitive components like semiconductor chips and precision resistors. Typically equipped with automatic nitrogen filling, high-precision temperature control, and automatic constant temperature functions.

3.Vacuum oven:Conducts drying or heat treatment under vacuum conditions. It significantly lowers the boiling point of water, allowing for efficient dehumidification at lower temperatures while minimizing oxidation. Suitable for atmosphere-sensitive materials or applications requiring rapid drying, such as chips and wafers.

4.Oxygen-free oven:Provides a strictly oxygen-free environment during baking. Primarily used in aerospace, petrochemical, marine, electronics, and communications sectors for processes like BCB curing, IC wafer handling, and dust-free drying of high-precision components. Requires specialized sealing and control systems, usually equipped with oxygen concentration monitoring.

5.Clean Room Oven: Provides a ultra-clean baking environment to minimize particulate contamination. Features stainless steel interiors with polished surfaces and HEPA filters. Essential for components with high cleanliness requirements, such as wafers and chips.

6.Aging Oven (Burn-in Oven): Specifically designed for high-temperature aging tests of electronic components. Equipped with timers, over-temperature protection, and leakage protection. Used for burn-in testing of resistors, capacitors, integrated circuits, etc.

Electronic component baking is a key process in electronics manufacturing that guarantees product quality and reliability. Moisture is a primary cause of soldering defects and component failure. Through precise scientific control of temperature, time, ramp-up rates, ESD protection, and cleanliness, baking effectively drives out internal moisture, restores the component's moisture sensitivity rating, and prevents welding defects such as the popcorn effect, delamination, and cold solder joints. Parameters must be comprehensively determined based on the component's MSL, package type, and storage conditions.
