Why Should PCB Boards Be Baked Before SMT Assembly?
In the field of electronics manufacturing, Surface Mount Technology (SMT) is a critical process in electronic assembly. The Printed Circuit Board (PCB), serving as the fundamental core component of various electronic devices, has quality and performance that directly determine the functional reliability and long-term stability of the final electronic product. Within the SMT assembly process, the baking step is an indispensable part of PCB pretreatment. It effectively removes residual moisture that may be present within the board substrate and on via hole walls, preventing defects such as blistering (popcorning), delamination, or pad oxidation during subsequent high-temperature processes like reflow soldering. Furthermore, it significantly enhances soldering quality and the integrity of circuit connections.
Baking is not merely a simple preheating or dehumidifying step. To a large extent, it determines the thermal stability and dimensional retention capability of the PCB during subsequent high-temperature processes (e.g., reflow soldering, wave soldering), thereby impacting component placement accuracy and soldering reliability. The baking process also helps to release internal stresses accumulated during PCB production, storage, and transportation, enhancing the board's mechanical strength and electrical performance. Thus, the baking process not only ensures the first-pass yield in SMT manufacturing but also profoundly influences the long-term performance, environmental adaptability, and service life of the final electronic product.
I.Moisture Removal: Preventing Blistering and Improving Solder Reliability
1.Preventing Blistering (Popcorning)
During production, storage, and transportation, PCB boards inevitably absorb moisture from the air. When these moisture-laden PCBs enter the high-temperature environment of SMT assembly, the moisture rapidly vaporizes and expands. If this moisture cannot escape promptly, significant internal pressure builds up, leading to interlayer separation, blistering, or cracking—a phenomenon known as "blistering" or "popcorning." Blistering can damage the PCB structure and cause functional failure of the electronic product. Baking effectively removes internal moisture from the PCB, preventing blistering and ensuring board stability under high temperatures.
2.Improving Solder Joint Reliability
The presence of moisture can lead to oxidation of the PCB's solderable surfaces, adversely affecting solder wettability. During soldering, if the solder cannot properly wet the surface, it may result in weak (cold) solder joints or other soldering defects. Additionally, moisture can cause voiding (bubbles) within solder joints, further degrading soldering quality. By removing moisture through baking, the cleanliness and dryness of the solder surfaces are ensured, thereby improving soldering stability and reliability.
II.Stabilizing Substrate Properties: Reducing Deformation and Improving Adhesion
1.Minimizing Changes in the Coefficient of Thermal Expansion (CTE)
The Coefficient of Thermal Expansion (CTE) is a critical property of PCBs. When a PCB contains moisture, its CTE can change, potentially leading to dimensional deformation under high temperatures. Baking removes this moisture, helping to maintain a stable CTE and thereby reducing the risk of deformation issues during the SMT process.
2.Improving Component Adhesion
During SMT placement, components must adhere firmly to the PCB surface. Surface moisture can compromise this adhesion, potentially causing component misalignment or tombstoning during placement. Baking removes surface moisture, increases the surface energy of the PCB, and enhances the adhesion of components, ensuring the performance and stability of the final product.
III.Preventing Long-Term Latent Defects: Extending Product Service Life
Even if no immediate, obvious issues like blistering, delamination, or poor soldering are observed during manufacturing, residual moisture within the PCB can still cause failures during the product's operational life. Moisture trapped inside the board can instigate ongoing chemical reactions, corroding circuit traces and component leads, leading to degraded electrical performance. In environments with significant temperature fluctuations, the repeated freezing and thawing of residual moisture can also damage the PCB structure and circuits. Baking to remove moisture effectively mitigates these potential long-term failure mechanisms, thereby extending the service life of the electronic product.
IV.Common Oven Types Suitable for PCB Baking

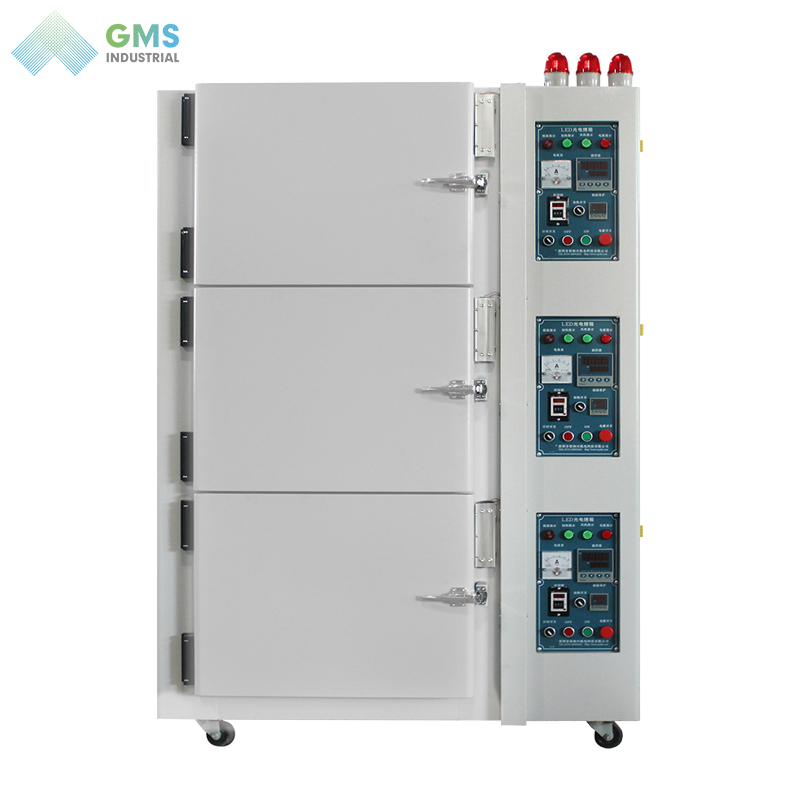

Convection ovens are the most widely used equipment for PCB baking. A forced air circulation system ensures uniform temperature distribution within the chamber, enabling rapid and efficient moisture removal. Key advantages include high temperature control precision, fast heating rates, and low energy consumption, making them suitable for high-volume production environments. These ovens are typically equipped with multiple temperature sensors and intelligent control systems, allowing precise adjustment of baking temperature and duration based on different PCB materials and process requirements.
2.Vacuum ovens:
Vacuum ovens accelerate the moisture evaporation process by reducing the internal chamber pressure. They are particularly suitable for baking highly moisture-sensitive PCBs. The vacuum environment lowers the boiling point of water, allowing effective baking at lower temperatures and avoiding potential thermal damage to the PCB. Vacuum ovens are typically used in the manufacturing of high-precision, high-reliability electronic products, such as those for aerospace and medical electronics. Their compact internal design ensures stable and uniform vacuum levels, supported by efficient vacuum pumps and sealing systems for effective and safe operation.
3.Tunnel ovens:
Tunnel ovens are continuous baking systems suitable for large-scale, high-efficiency PCB production. PCBs are continuously fed through the oven on a conveyor belt, passing through multiple temperature zones for gradual heating, soaking, and cooling. Their main advantages are high throughput and a high degree of automation, enabling non-stop production. Tunnel ovens typically feature multi-zone temperature control, allowing flexible configuration of temperature and time parameters for each zone to ensure temperature uniformity and stability throughout the baking cycle.
4.Nitrogen Ovens:
Nitrogen ovens perform the baking process within a nitrogen-rich environment, primarily used for PCBs and components sensitive to oxidation. Nitrogen, being an inert gas, effectively excludes atmospheric oxygen, preventing oxidation of the PCB during high-temperature baking. These ovens are equipped with nitrogen supply systems and precise gas flow control to accurately maintain the desired nitrogen concentration and flow rate, ensuring process safety and reliability. Nitrogen ovens find widespread application in semiconductor manufacturing and high-end electronics production, ensuring superior product performance and reliability.
In conclusion, baking PCBs before SMT assembly is a critical step for ensuring the quality and reliability of electronic products. It effectively removes moisture to prevent blistering and soldering defects, stabilizes substrate properties, and helps prevent potential long-term failures. Selecting the appropriate baking equipment based on specific production needs and PCB characteristics is essential for guaranteeing the quality and reliability of electronic products throughout the manufacturing process.
